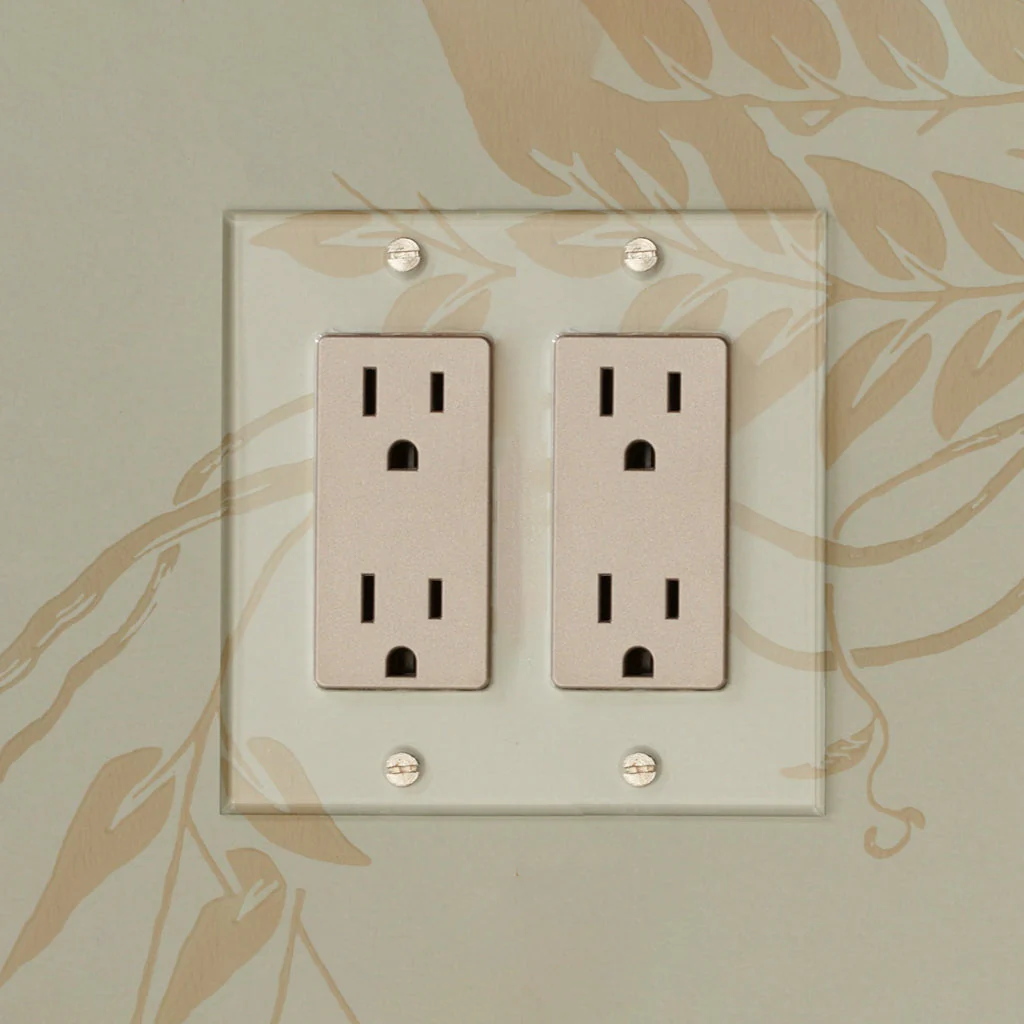

The Invisible Plate 2 Gang Outlet by Forbes & Lomax is a two-gang transparent acrylic outlet plate available in multiple configurations including duplex, USB, and GFCI. The Invisible line was inspired by the glass plates of the 1930s, designed to showcase unique wall treatments such as wallpaper and lime wash. Each unit includes two wall plates: a clear lucite top plate and a white metal backplate. When installed over stone or tile, the white metal backplate may require faux painting to blend with the surface.

Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.

Outlets can be mixed with configurations of duplex, cable, toggle switches, rotary dimmers, and push buttons on the same plate. Contact us for custom configurations and alternate outlet colours.

Specifications

2 Gang Plate: 115 mm (4.53") x 115 mm (4.53")
Also available: 1 Gang Plate — W 70 mm (2.76") x H 115 mm (4.53"). For 3 and 4 gang plates, contact us.
Available Configurations
Duplex (Tamper Resistant)
Duplex GFCI (Tamper Resistant)
Duplex with USB (Tamper Resistant)
Phone (RJ11) — contact us
Data (Cat 5 or Cat 6) — contact us
Cable TV (F Type Coax) — contact us
Certifications
Wall-plates conform to UL 514D, certified to CSA C22.2 No. 42
Outlets conform to UL 498, certified to CSA C22.2 No. 42
Rated for 20A circuits; plug shape for standard 15A plugs
Must be installed by a licensed electrician. Units install into standard junction boxes — boxes must be recessed below the finished wall surface by at least 1/8". Verify recess depth before ordering.
Areas of application: light-duty commercial, residential.

Materials

Acrylic plate.

Screws available in Unlacquered Polished Brass, Nickel Silver, Brushed Stainless Steel, and Antique Bronze

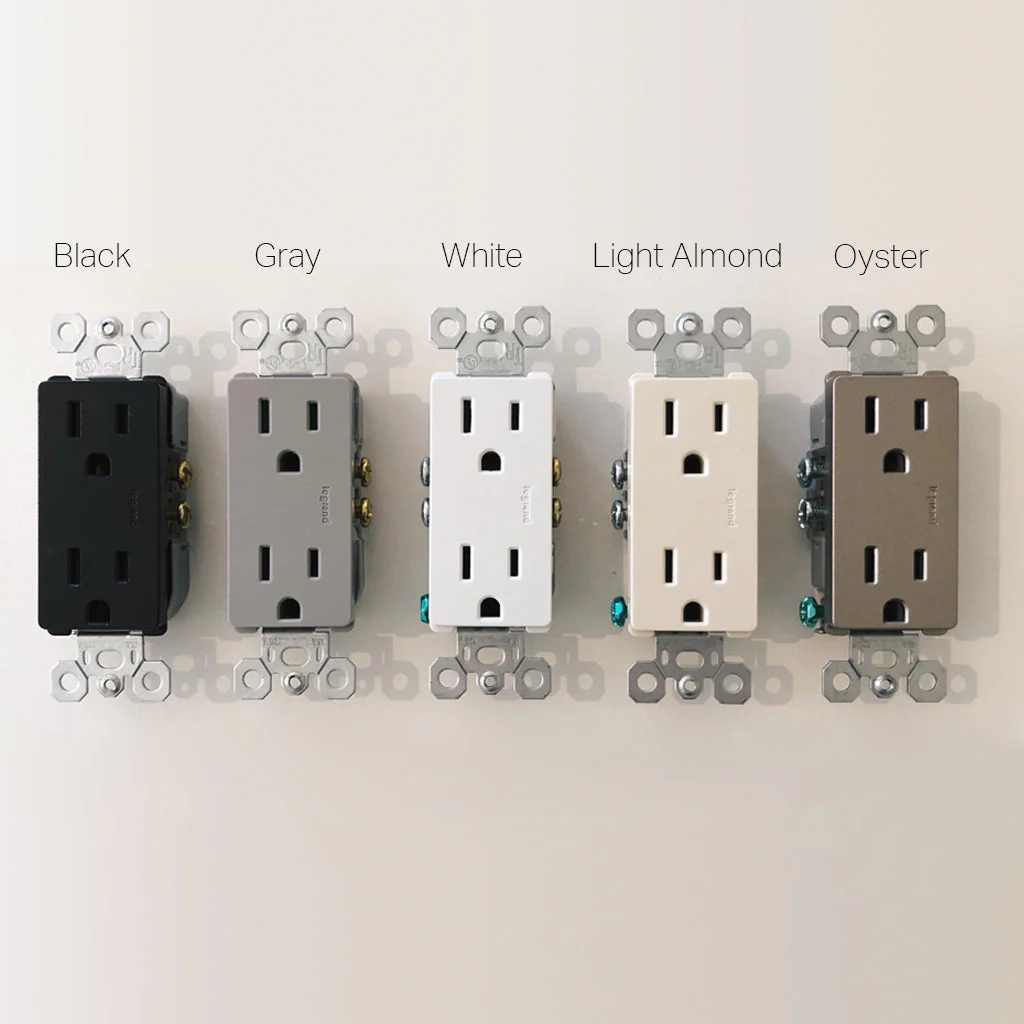

Outlet inserts available in Black, Grey, White, Light Almond, and Oyster — contact us for alternate colours

Unlacquered Polished Brass and Aged Brass are living finishes that change colour over time. Lacquered Brushed Brass is a non-living finish. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.
