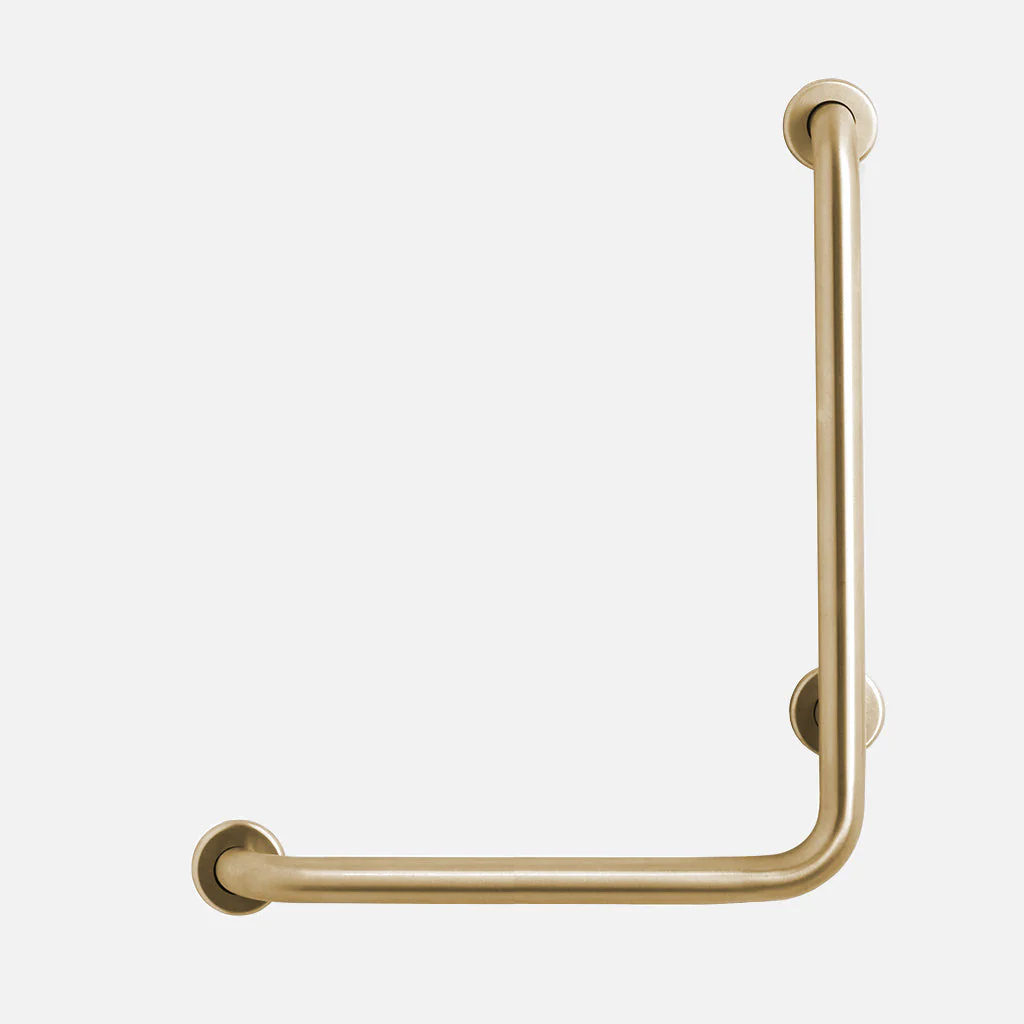

The Charlie L-Shape Grab Bar by CBH is a customizable L-shaped safety grab bar available in smooth or knurled surface textures. The knurled version meets Ontario Building Code (OBC) and ADA accessibility requirements for grip resistance. Made in Canada. Part of the Charlie Collection.

Surface Options

• Smooth — Refined, minimalist. Suited to residential and design-forward spaces.
• Knurled — High-grip texture meeting OBC and ADA standards for public or regulated environments.

Knurled finishes are hand-applied and may show slight texture variations. These do not affect performance. All sales are final.

Specifications

• Standard diameter: 31.75 mm (1.25")
• Custom diameters: 25.4 mm (1") or 38 mm (1.5" — OBC/ADA compliant)
• Standoff: 38 mm (1.5") from wall to inside surface
• Flange: Concealed (1.25" only) or exposed

Mounting hardware included.

Custom Orders

Include: vertical × horizontal length, finish, diameter, handing (left/right), surface texture, flange type, and standoff dimension.

The smooth version may not meet code requirements for grip in regulated spaces. Select knurled for accessibility compliance.

Materials

Standard Finishes

• Satin Stainless Steel
• Flat Black
• Satin Brass

Custom Finishes

• Gloss White
• Polished Stainless Steel
• Polished Brass, Satin Brass, Antique Brass (max 36" length)
• Antimicrobial clear coating available

Product Downloads

• Charlie Grab Bar Installation and Options (PDF)
