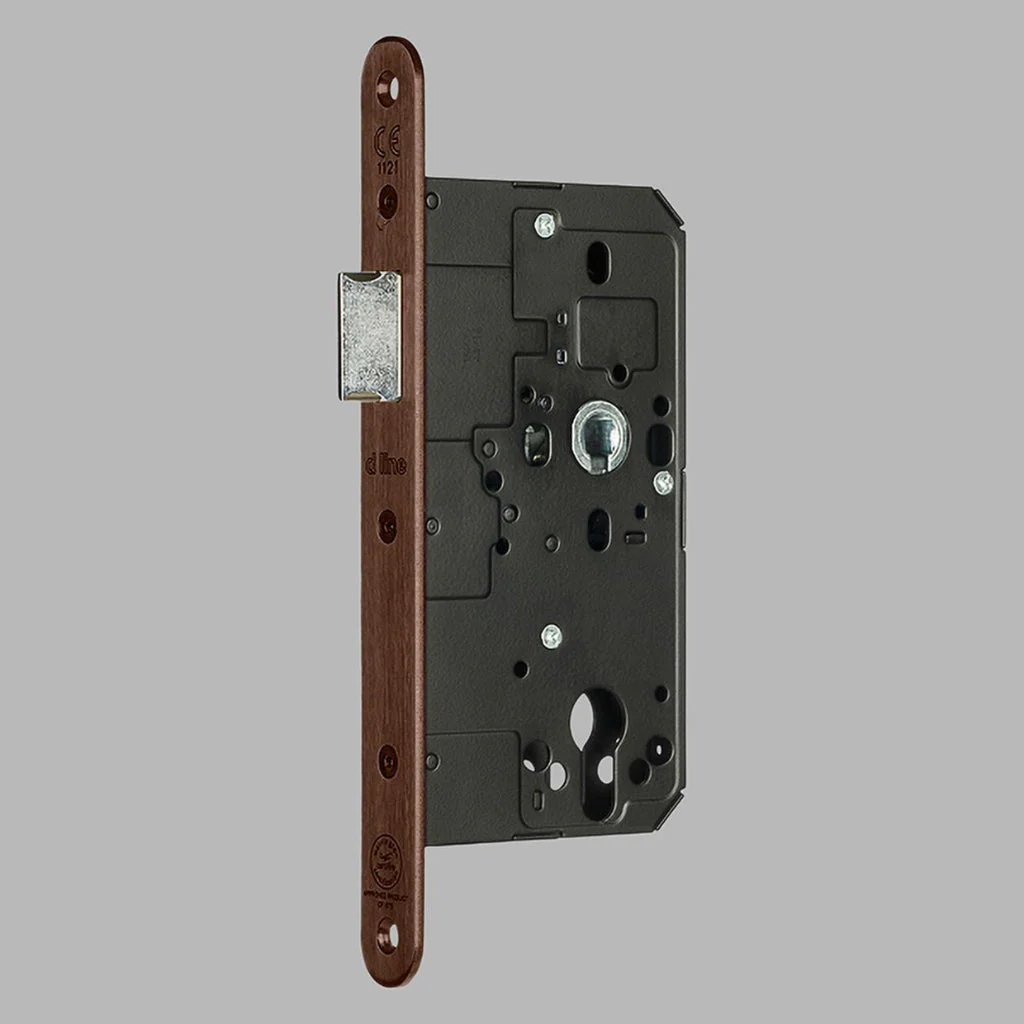

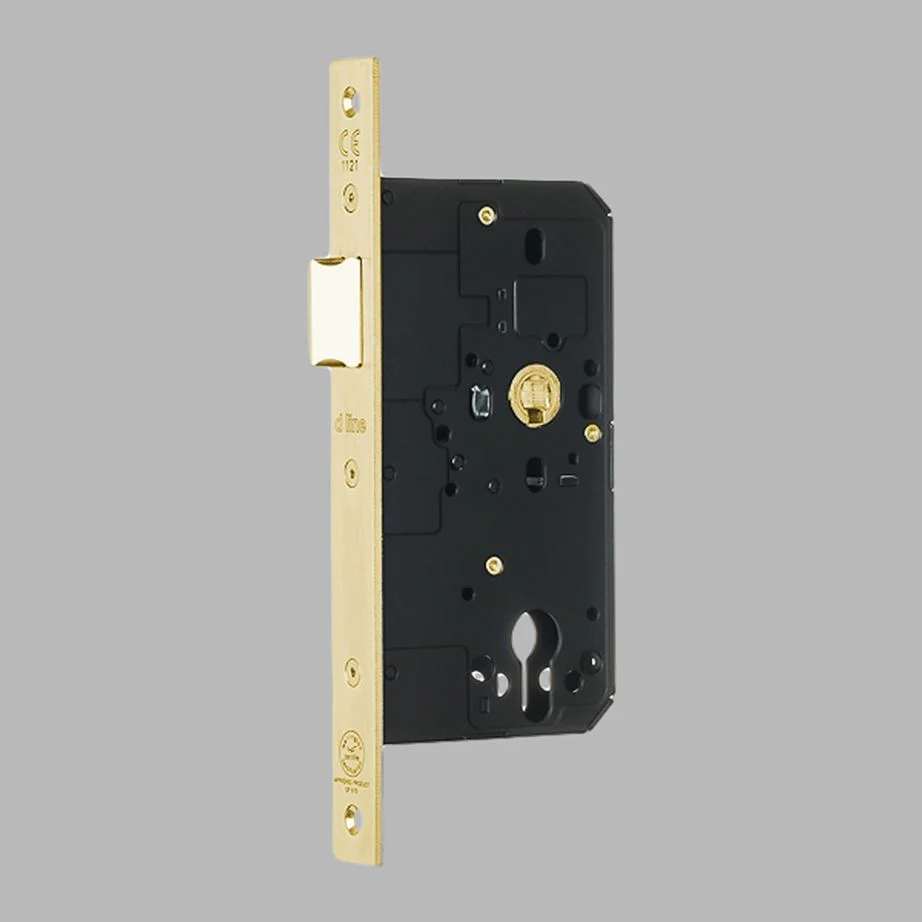

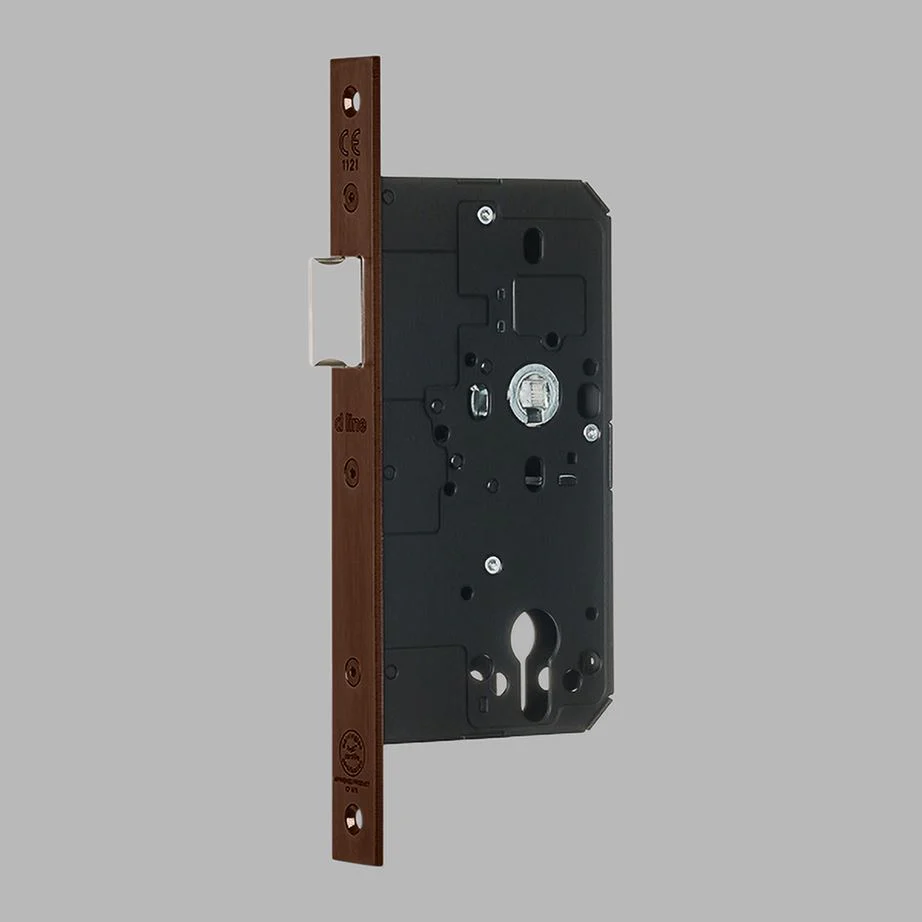

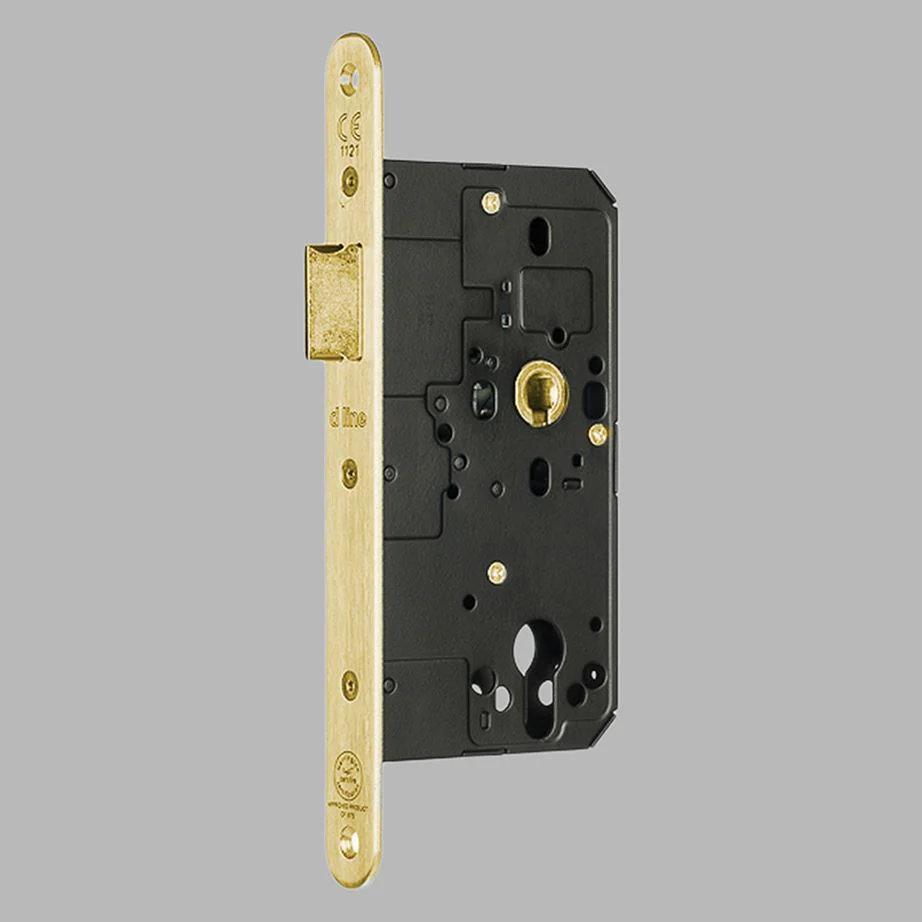

The Euro Mortise Passage Latch Lock from the Knud Holscher collection by d line is a stainless steel passage latch lock for internal doors without a locking mechanism. Designed for hallways, closets, and commercial passage doors. Features a strong spring and strike plate. Available in round or square faceplate.

Made in Europe.

Specifications

• Dimensions: W 24 mm (0.9") x H 235 mm (9.2") x D 88 mm (3.4")
• Backset: 60 mm
• Centres: 78 mm
• Faceplate: Round or Square
• Suitable for sprung and most unsprung lever furniture
• Spindle range: 33–111 mm door thicknesses (for larger, contact us)

Areas of application: residential, commercial.

Materials

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).

Additional Finishes (Available Upon Request)

• PVD Satin Brass
• PVD Satin Bronze
• PVD Satin Black
• Polished versions
• X-BAC antimicrobial coating

Product Downloads

• Data Sheet — 60 mm, Square, Strong Spring + Strike Plate (PDF)
• Data Sheet — 60 mm, Round, Strong Spring + Strike Plate (PDF)
• Passage Latch Lock Spec Sheet (PDF)
• Euro Mortise Mounting Instructions (PDF)
