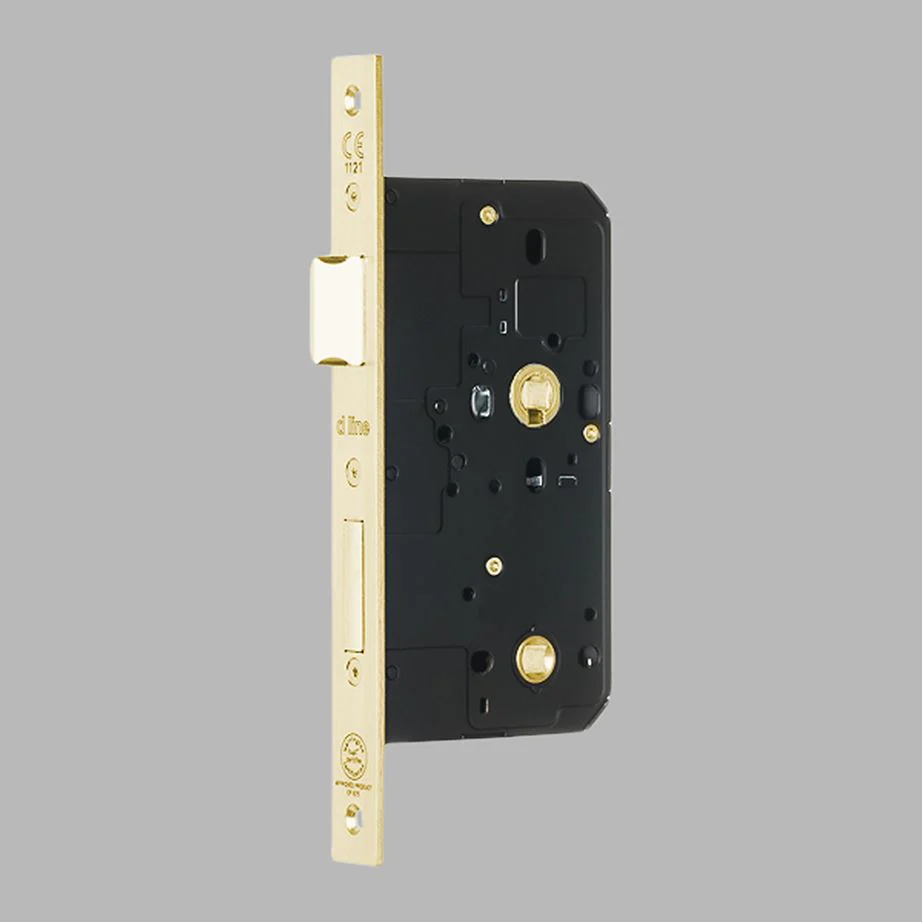

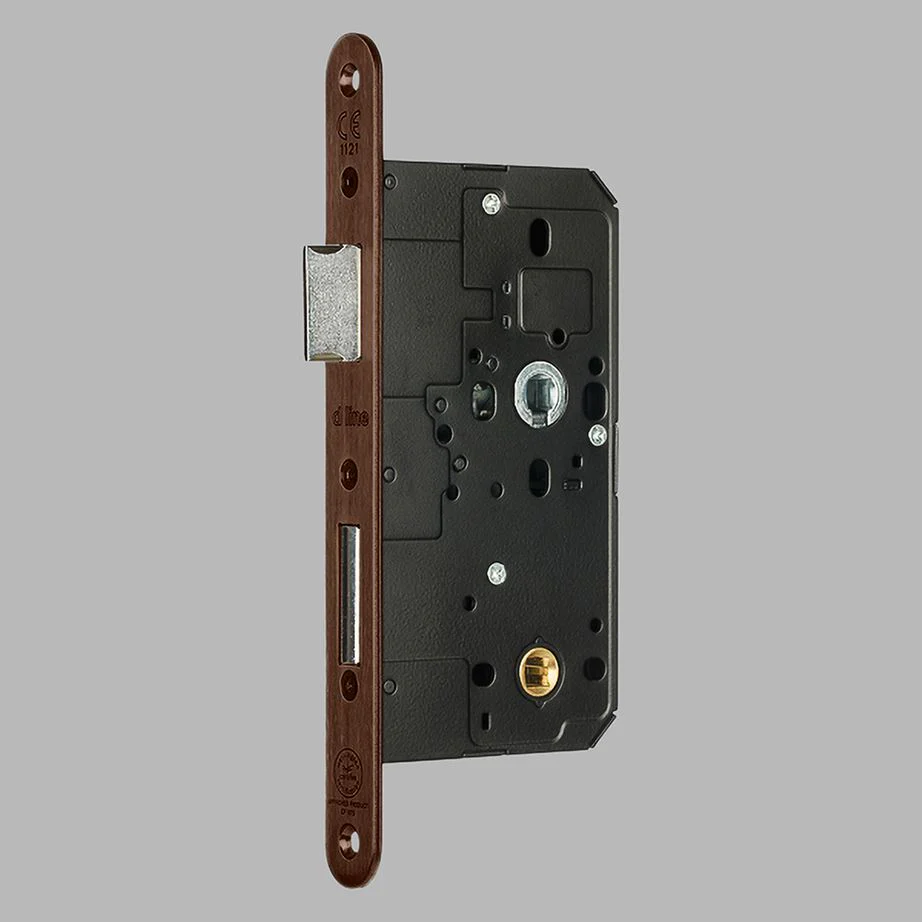

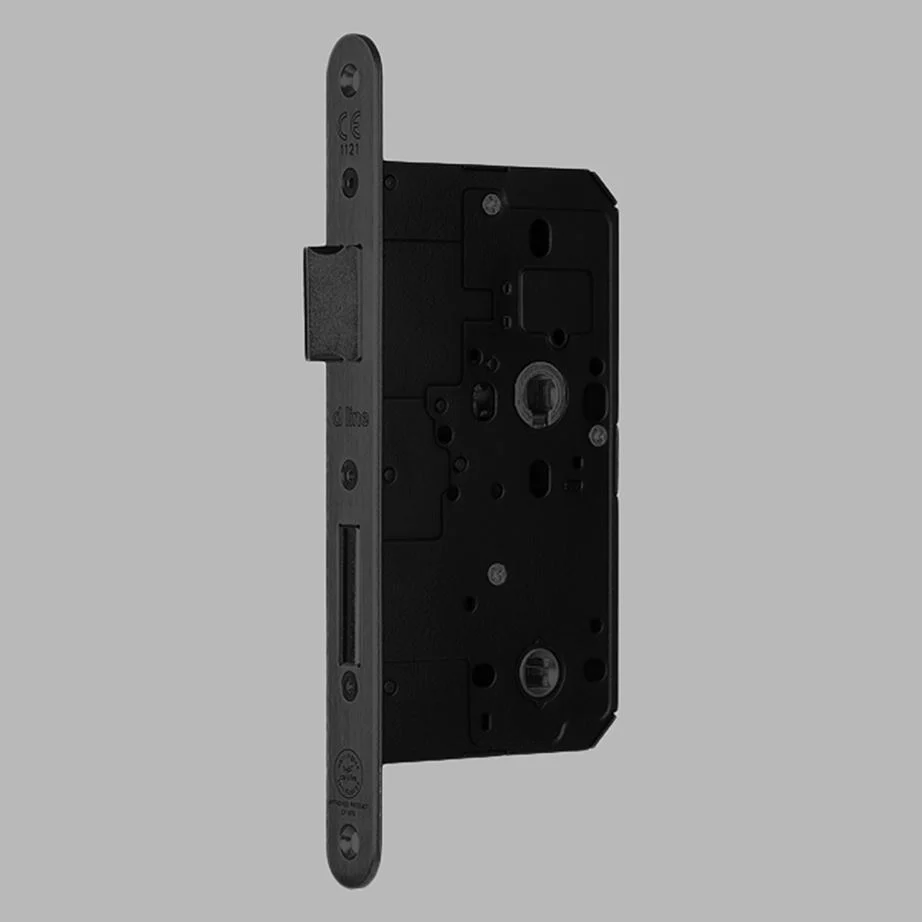

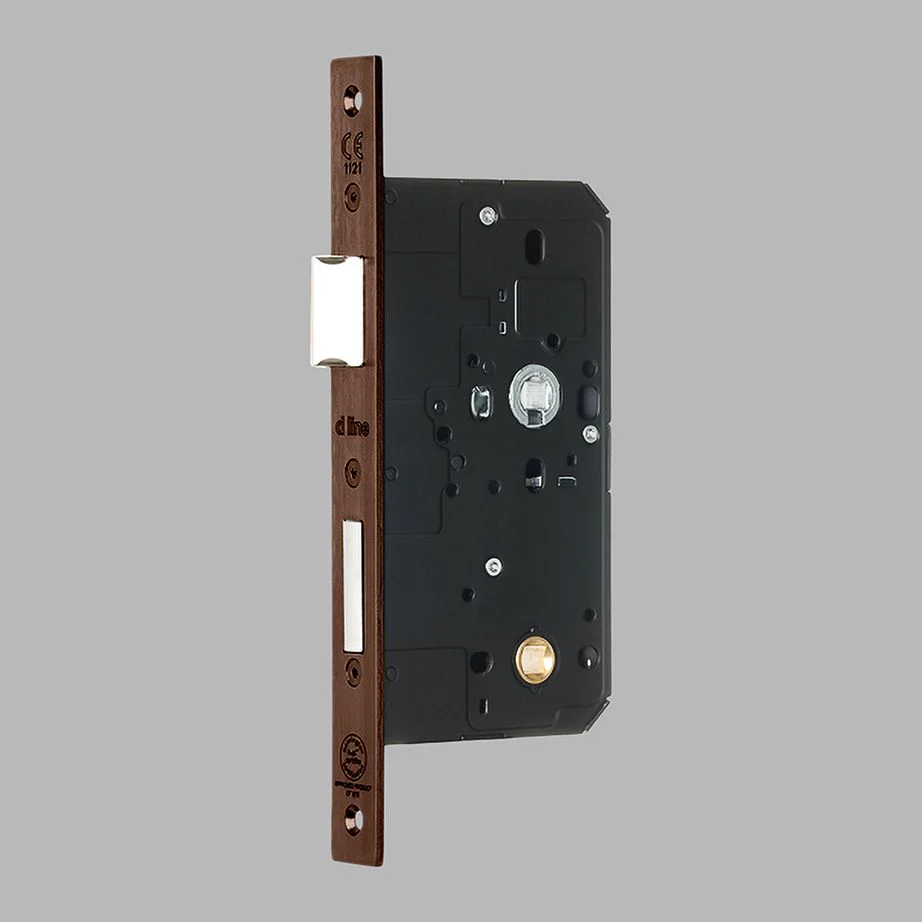

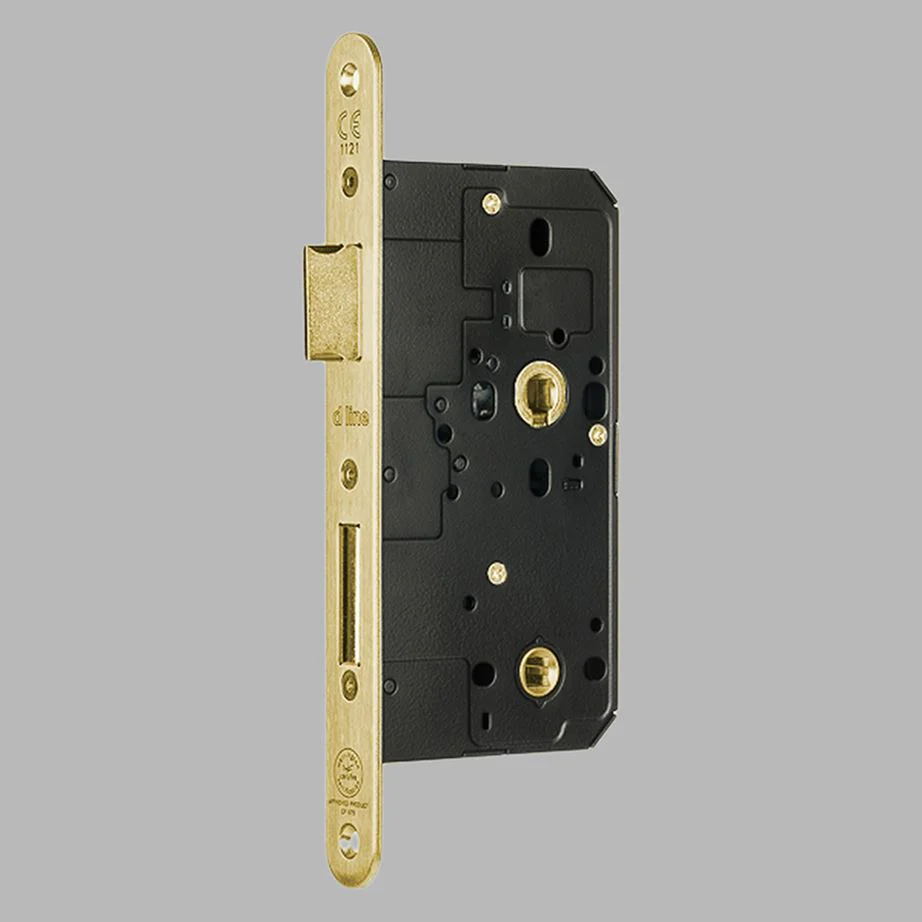

The d line Euro Mortise WC Privacy Lock by d line is a stainless steel mortise lock for privacy doors such as washrooms and bedrooms. Part of the Knud Holscher collection — timeless Danish design. Pairs with a lever set and requires a thumb turn for full functionality.

Available as round or square plate. Handcrafted and rigorously tested. Made in Europe.

Specifications

• Dimensions: W 24 mm (0.9") x H 235 mm (9.2") x D 88 mm (3.4")
• Backset: 60 mm (2.3")
• Centers: 78 mm (3")
• Suitable for sprung and most unsprung lever furniture
• Spindle range: 33–111 mm door thickness (contact us for larger)
• Areas of application: commercial, residential

Materials

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).

Additional Finishes (Available Upon Request)

• PVD Satin Brass
• PVD Satin Bronze
• PVD Satin Black
• Polished versions
• X-BAC antimicrobial coating

Product Downloads

• d line Euro Mortise WC Lock Round (PDF)
• d line Euro Mortise WC Lock Square (PDF)
• WC Privacy Lock Spec Sheet (PDF)
• Euro Mortise Mounting Instructions (PDF)
