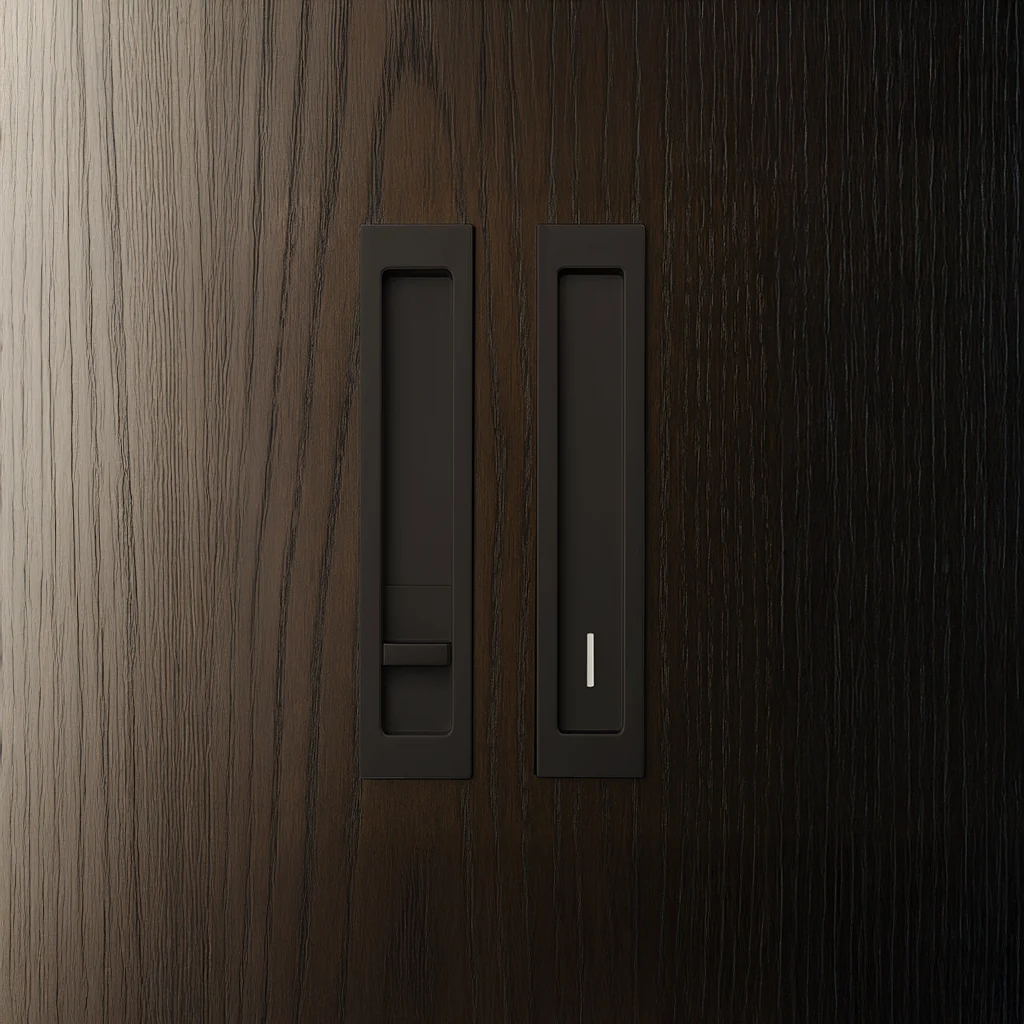

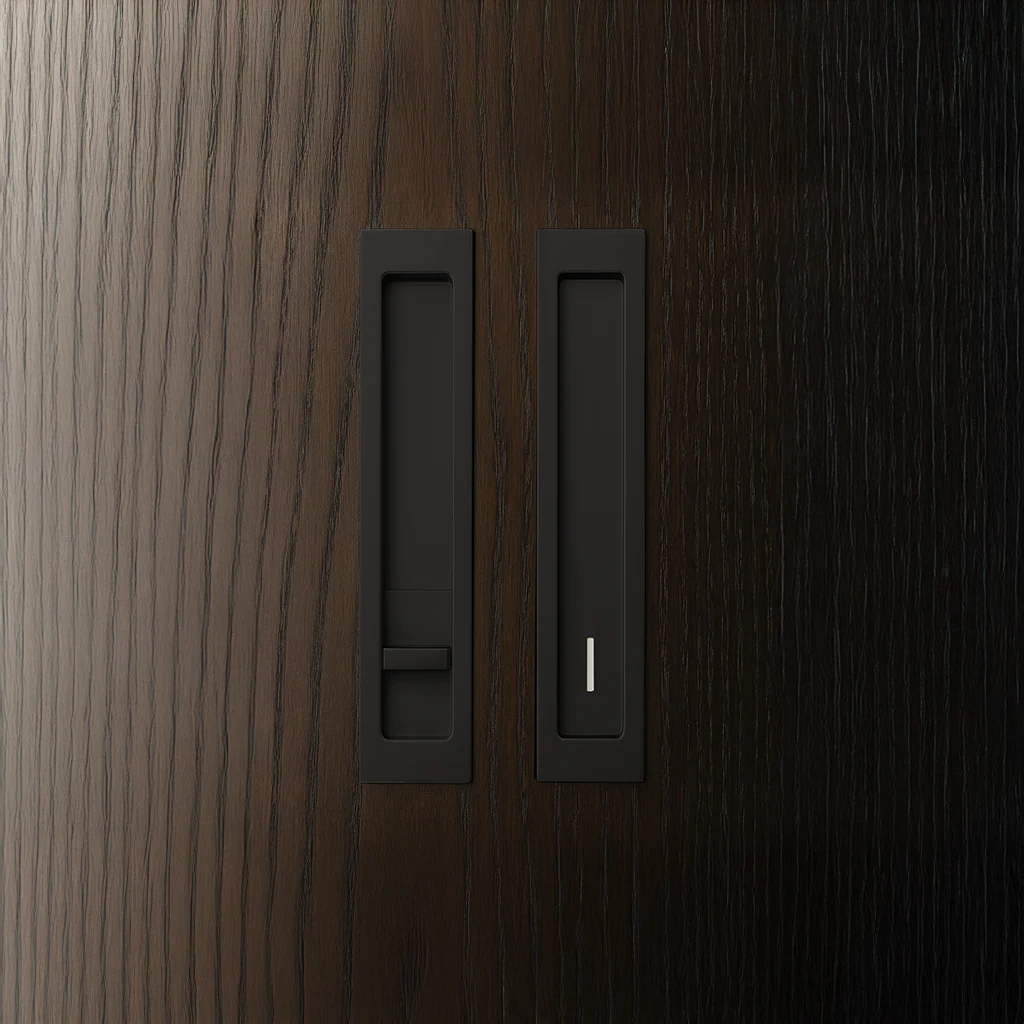

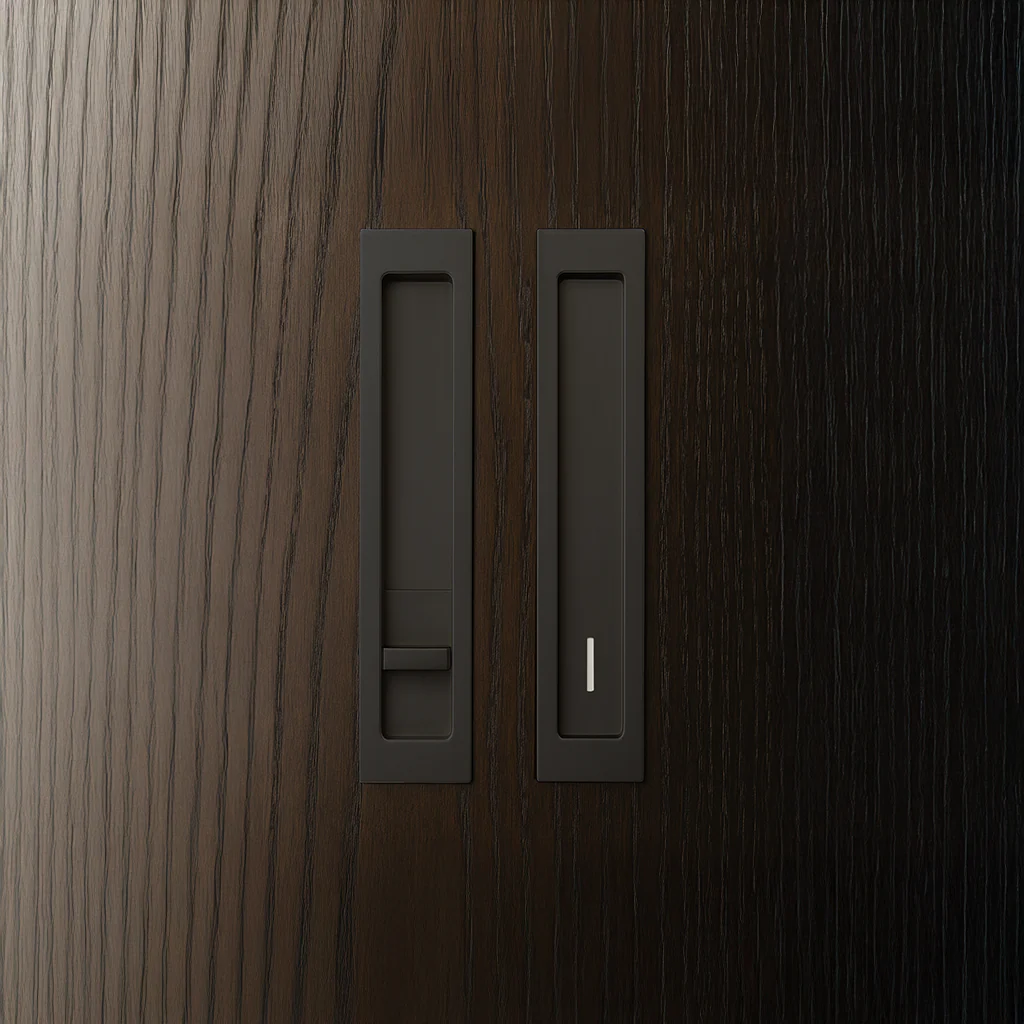

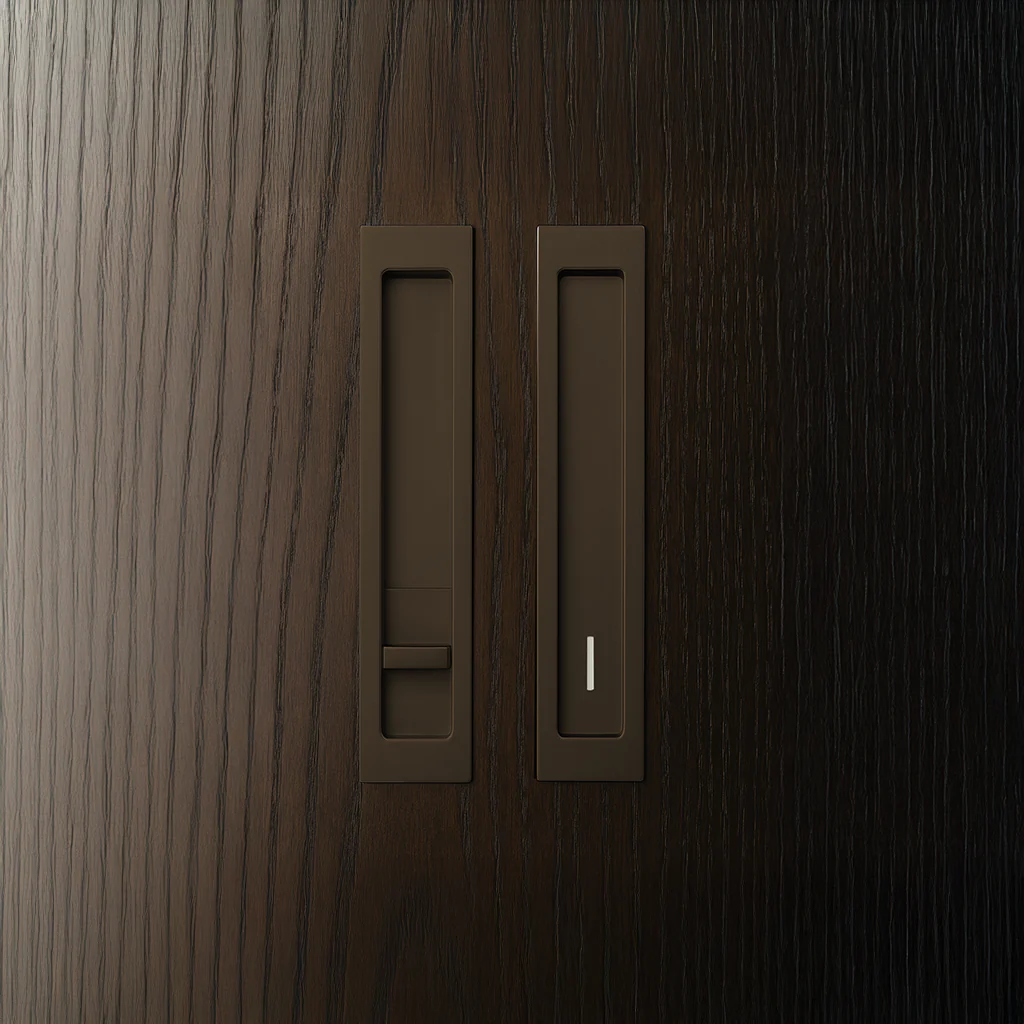

The Halliday + Baillie HB1490 Series by Halliday Baillie is a precision-milled flush pull and privacy lock system crafted from solid brass, designed for large-scale sliding doors. Each set includes 310 mm flush pulls with multiple configurations including privacy and snib-only options.

Designed for timber or aluminum doors with a minimum thickness of 45 mm, the HB1490 projects just 2 mm from the door surface. Where door thickness allows, flush pulls can be fully recessed for a seamless, uninterrupted look. Installation requires no adhesives or epoxies. Includes an emergency release option and a pull-out end pull for smooth operation of large or heavy sliding doors.

Specifications

• Flush pull: 310 mm L × 50 mm W × 15 mm D
• Backset: 55 mm
• Door compatibility: Timber or aluminum, minimum 45 mm thickness
• Privacy and snib-only configurations, emergency release, pull-out end pull

Configurations

• HB1490: Privacy Set
• HB1492: Snib Inside, Blank Outside (available on request)
• HB1493: Snib Inside, No Pull Outside (available on request)
• HB1494: Snib Both Sides (available on request)

Materials

Solid brass flush pulls; lock body in zinc diecast with brass components.

Available Finishes

• SC — Satin Chrome
• BC — Brushed Chrome
• BN — Brushed Nickel
• WHT — Powder Coat White
• EBA — Electro™ Black Ace
• EMB — Electro™ Medium Bronze
• KC — Matte Black Chrome
• ORB — Oil Rubbed Bronze
• EFW — Electro™ Flat White
• EDB — Electro™ Dark Bronze

Product Downloads

• HB690 Cut Sheet (PDF)

• HB Full Catalogue
