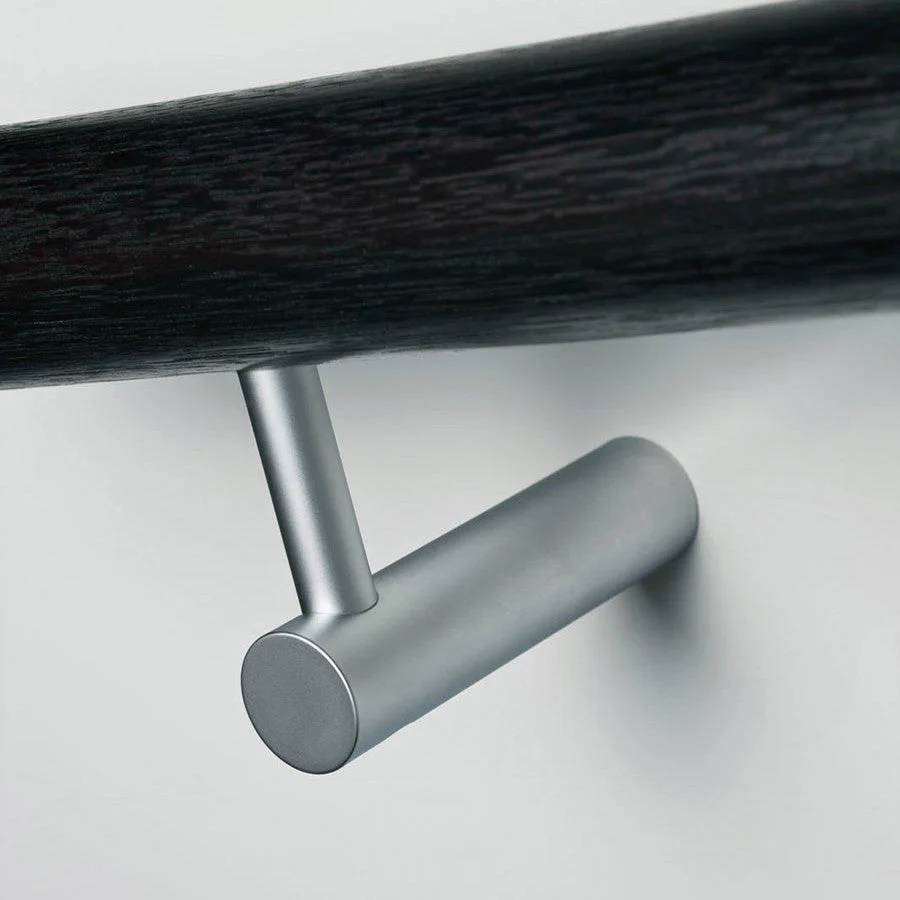

The HB 520 Handrail Bracket by Halliday Baillie is a minimal cylindrical handrail bracket that integrates into a variety of design settings. For exterior and marine applications or where corrosion resistance is desired, see the HB 530 in solid stainless steel.

Specifications

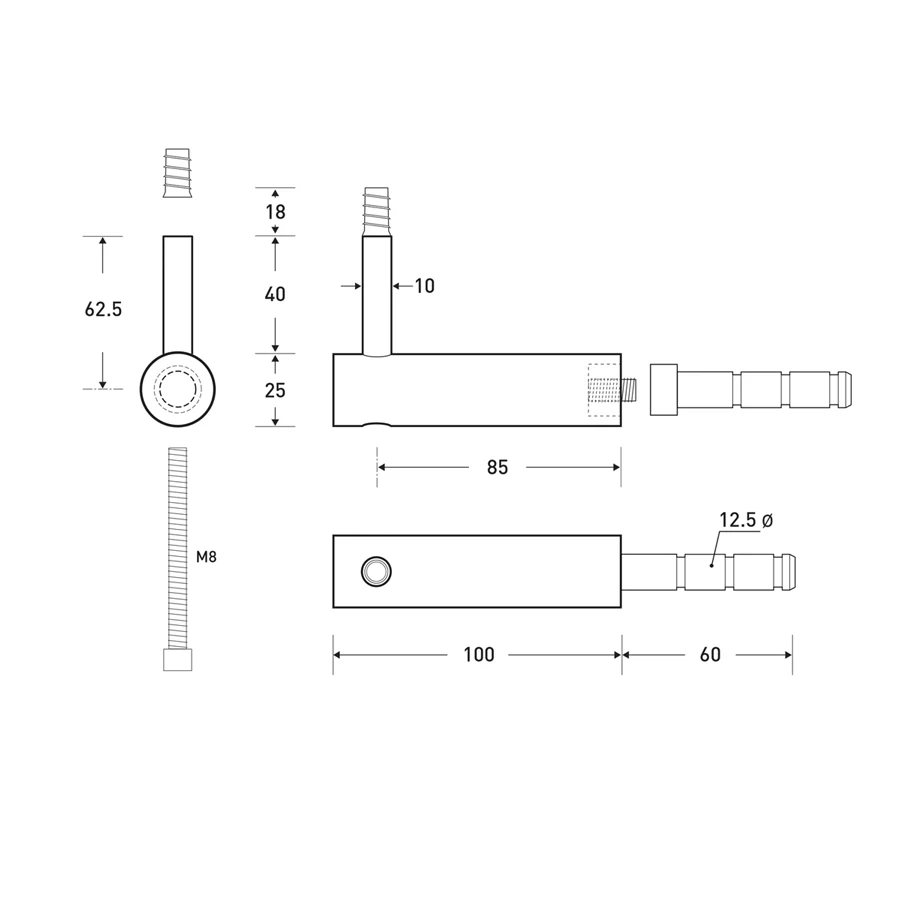

• L 100 mm (4") x H 25 + 40 mm (1" + 1.6") x W 25 mm dia. (1")
• Maximum spacing: 800 mm (31.50")
• All fasteners included; epoxy sold separately

Optional Accessories

• Glass Fixing Kit 522 for HB 520 — for installations on glass or other panel material, sold separately

Materials

Non-anodized aluminum alloy.

Available Finishes

• Satin Chrome
• Polished Chrome
• Matte White
• Gloss White
• Satin Nickel
• Black
• Electro Black ACE

Custom finishes available upon request.

Product Downloads

• HB 520 Spec Sheet (PDF)
• HB Finish Guide (PDF)

• Halliday_Baillie_SpecSheet_HB500.pdf
