The Knud M Door Lever by d line is a stainless steel door lever with a simple, soft bend that provides a tactile grip. Available in Ø 19 mm and Ø 16 mm. Certified to EN1906 and EN1634-1.

Part of the Knud Holscher collection for d line — minimalist architectural hardware designed in 1971. Made in Europe.

Specifications

• Lever: Ø 19 mm (0.75") / Ø 16 mm (0.625")
• Door thickness: 33 mm (1.3") – 44 mm (1.73")
• Bore hole: Ø 25 mm
• Certifications: EN1906, EN1634-1

European roses are smaller than standard North American models. Verify all dimensions carefully — these may not fit existing or pre-bored door holes.

Additional Components

• Knud Toilet Indicator
• Knud Toilet Indicator Long

Areas of application: Commercial, Residential.

Materials

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).

Additional Finishes (Available Upon Request)

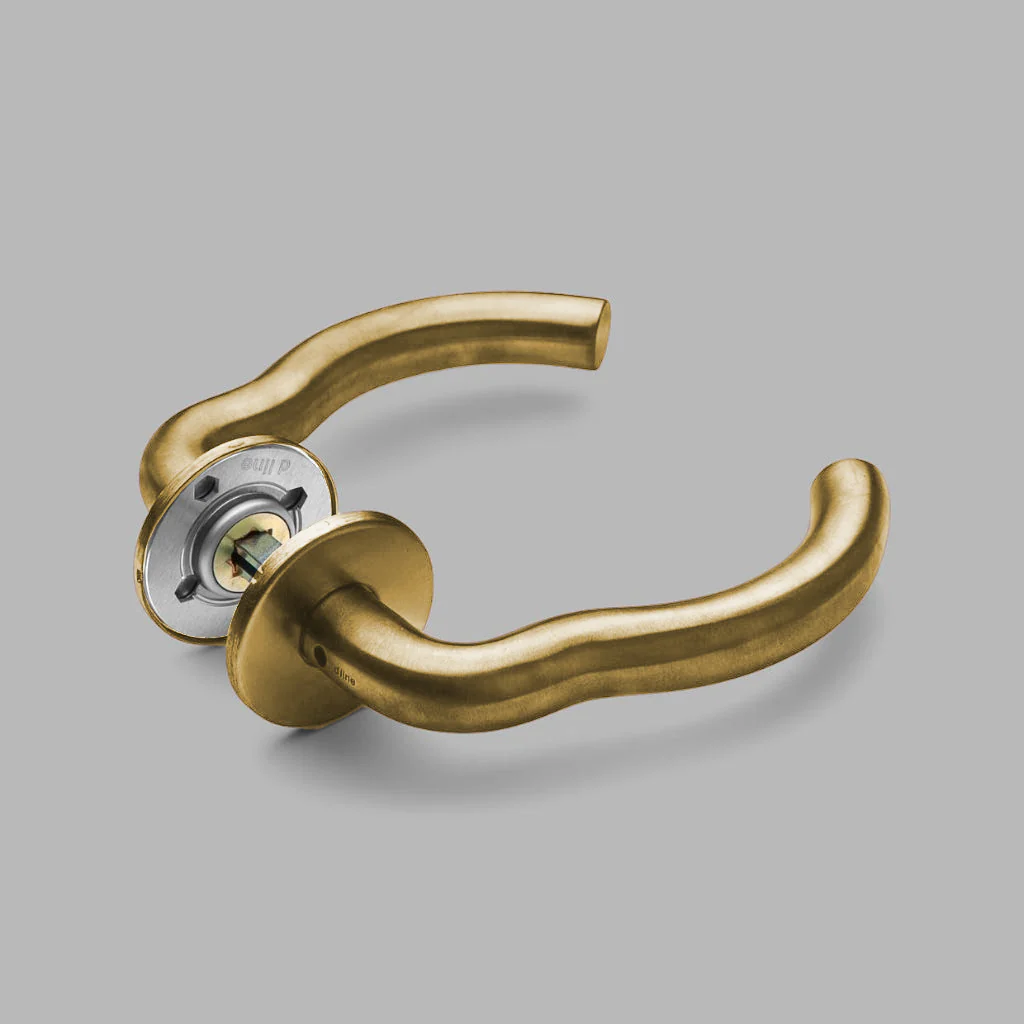

• PVD Satin Brass

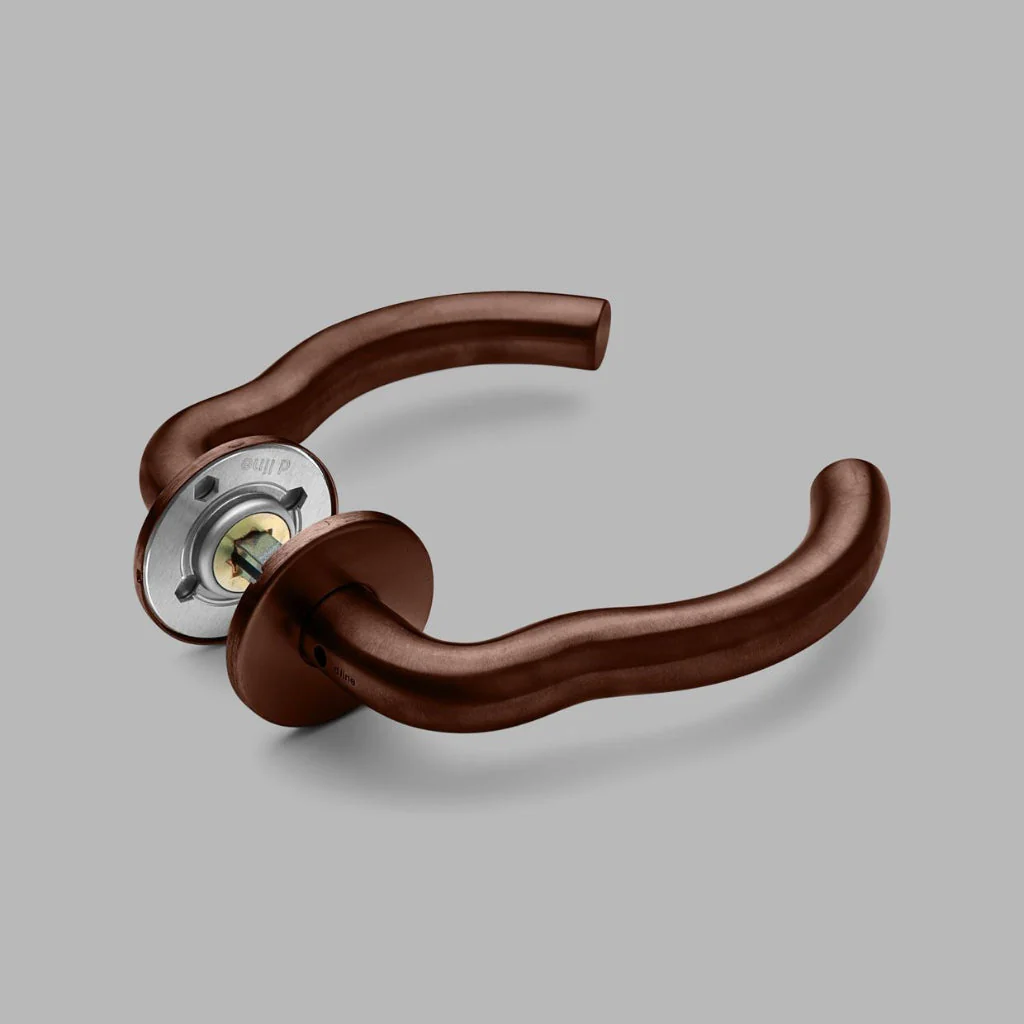

• PVD Satin Bronze

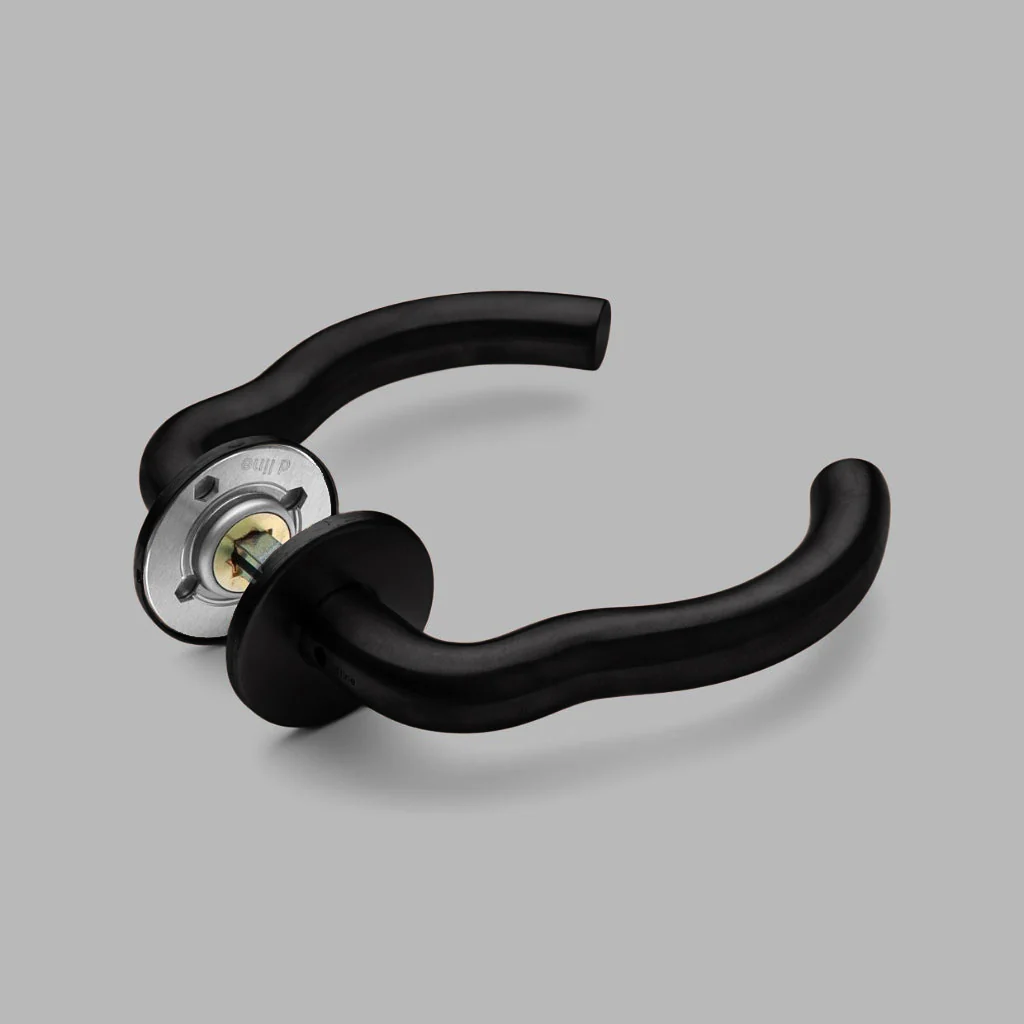

• PVD Satin Black

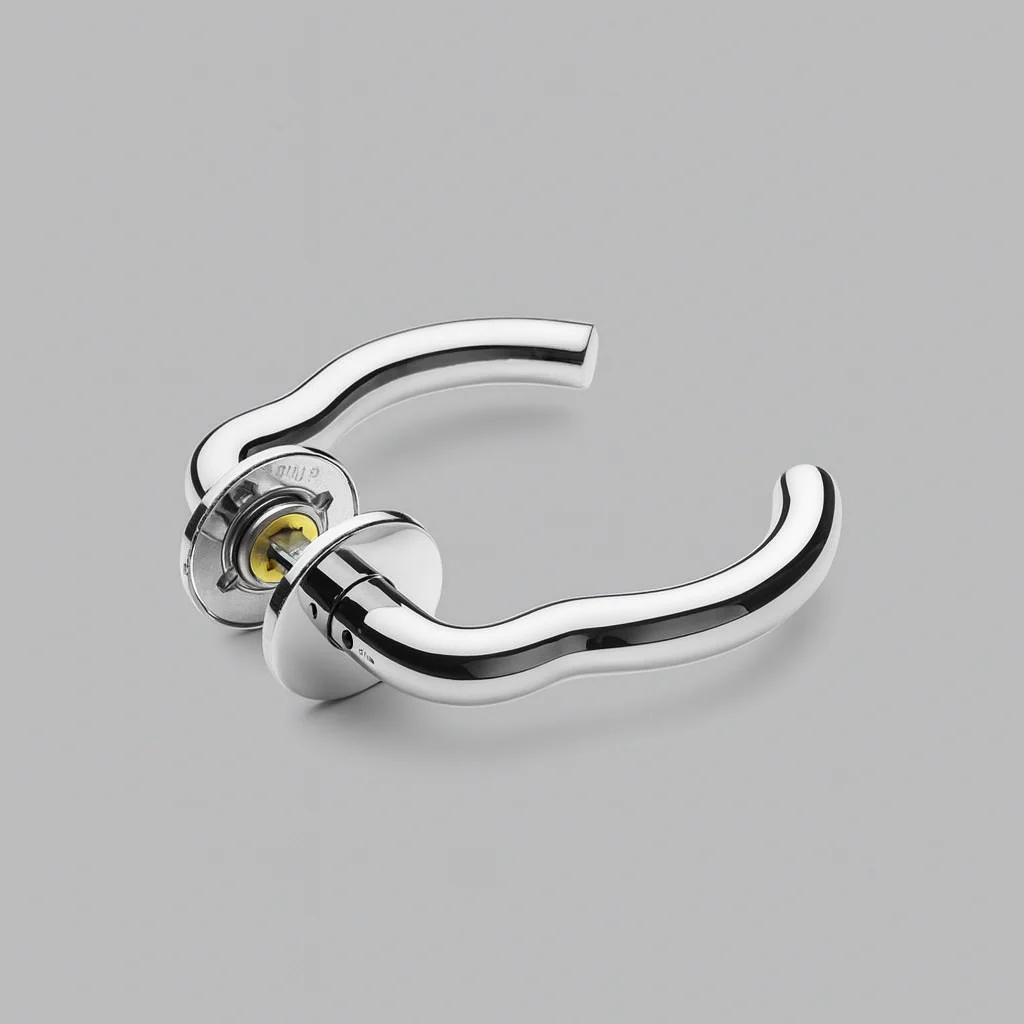

• Polished versions
• X-BAC antimicrobial coating

Product Downloads

• Knud M Lever Product Sheet (PDF)
• d line Brandbook (PDF)
• d line Passage Latch Options (PDF)
• d line Privacy Lock Options (PDF)
