Noha Residential Swinging Door Latch

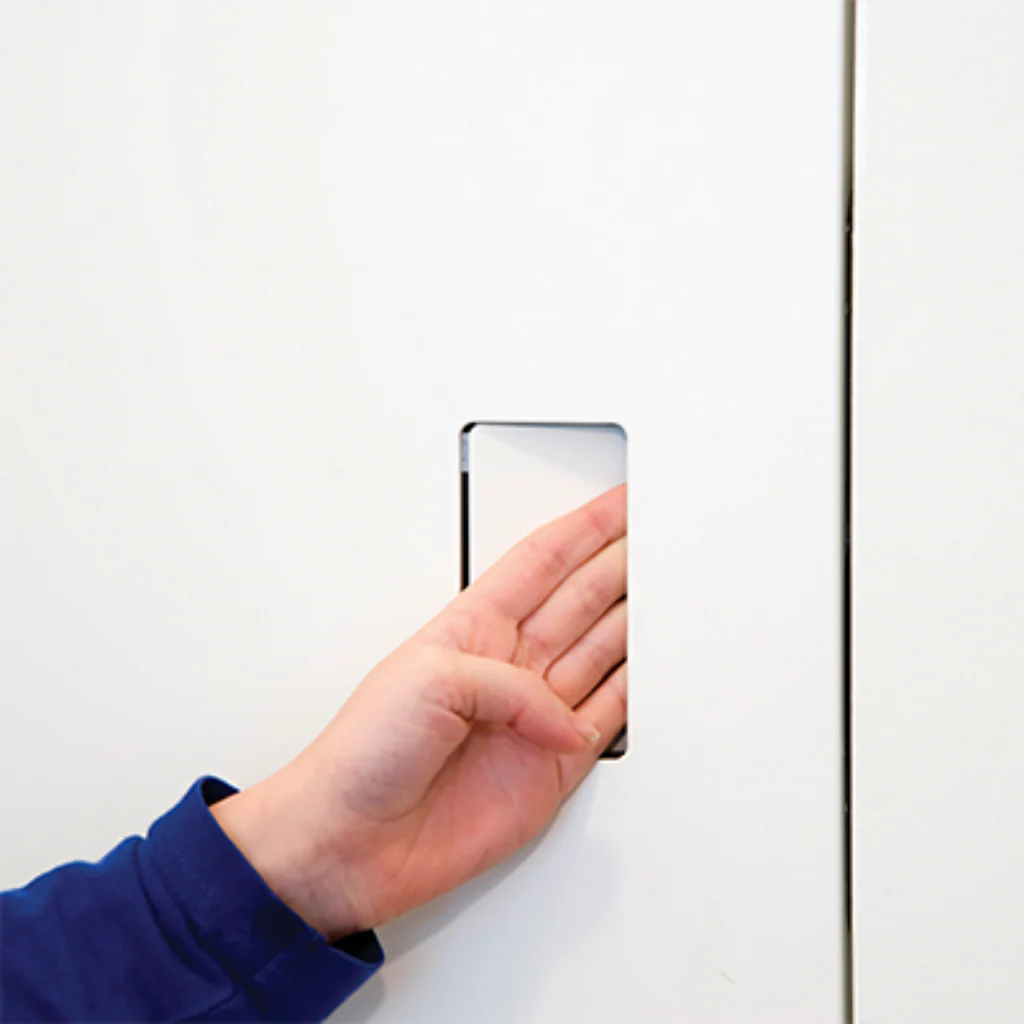

The Noha® Mini by Noha is a patented recessed door handle with integrated magnetic latch system for swing doors. The mechanism is fully concealed within the door panel, matching the door's finish for a seamless aesthetic. Available in passage (NM 938, non-locking) and privacy (NM 937, bathroom/bedroom locking) configurations.
This page allows selection of Passage or Privacy function. All required and optional components are dynamically added based on the chosen configuration. Available in Satin Chrome, White, and Black.
Purchasing Overview
Required Components
- Noha Mini NM 938 (Passage) — Euro mortise passage latch with built-in handle. Cover plate not included.
- Noha Mini NM 937 (Privacy) — Euro mortise privacy latch with built-in handle. Cover plate and thumb turn not included.

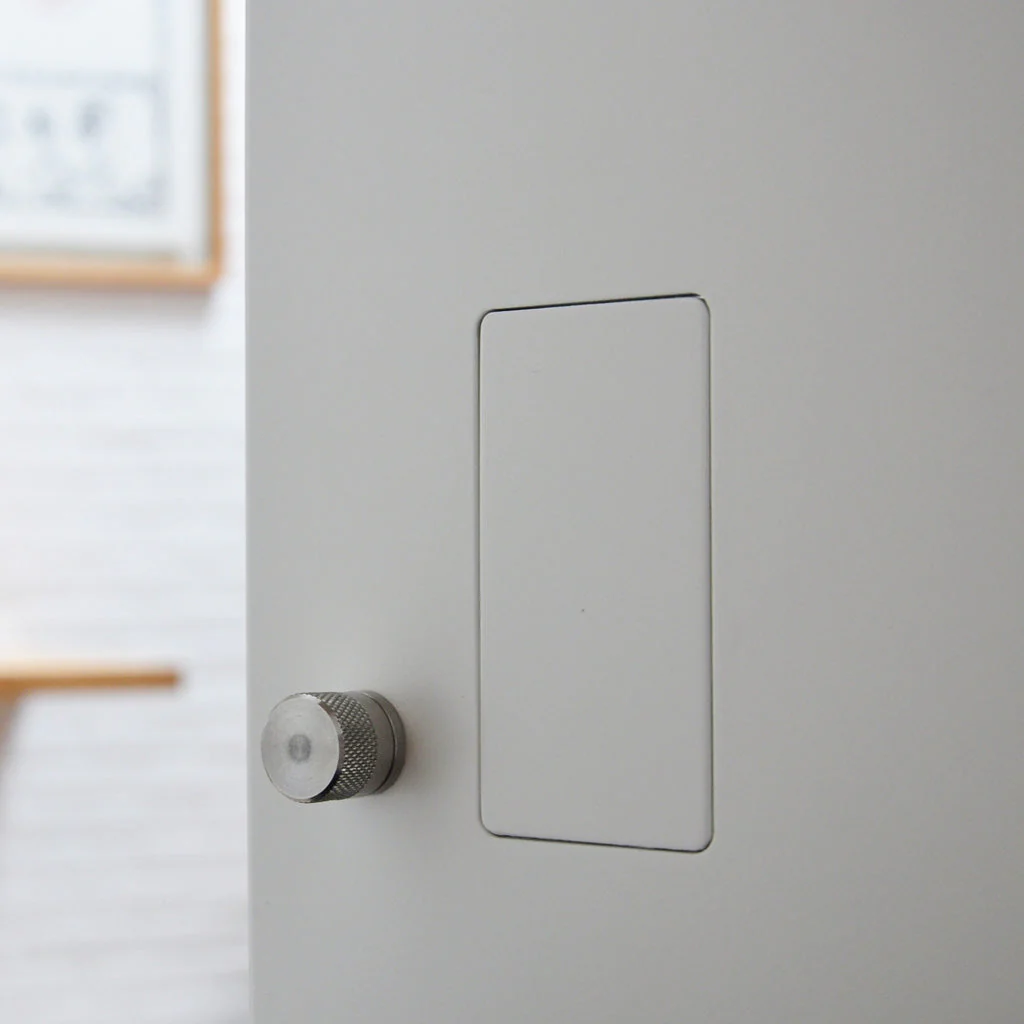

- Noha Cartel Privacy Lock — Required for privacy configuration. Knurled thumb turn cylinder.
Optional Components
Noha Cover Plate
- If no cover plate is selected, one must be custom-made by the door manufacturer or installer from the door material.
- MDF with primer finish — ready for custom painting
- INOX in brushed stainless steel
- Bronze
- Enamel — blue, green, yellow, pink, dark-brown
Noha Milling Tools
Precision milling tools for preparing door panels for Noha Mini integration:
- Z44-2 12 — 2 blades, Ø 12 mm bit, 50 mm length
- Z44-PRO 12 — 4 blades, Ø 12 mm bit, 90 mm length
- Z44-PRO 10 — 2 blades, Ø 10 mm bit, 90 mm length
Specifications
- Strike plate: L 82 mm (3.23") × W 32 mm (1.26")
- Door thickness: 36 mm (1.42") to 80 mm (3.15") and beyond
For privacy doors, the lock can be disengaged from the outside in an emergency by sliding a thin, flexible object between the cover plate and door handle.
Materials
Available Finishes
- Satin Chrome
- Black
- White
Product Downloads
Product Information
Product Information
Shipping & Returns
Shipping & Returns
