Minimal, built-in bath sets crafted from marine-grade stainless steel for lasting performance and refined aesthetics.

Qtoo Bath Sets offer a modern approach to integrated bath fittings - combining timeless Danish design with precision-engineered functionality. Each set includes internal rough-ins and is available with an optional drain system, delivering a complete, installation-ready solution.

Built from corrosion-resistant stainless steel, Qtoo Bath Sets are ideal for residential and commercial environments alike - designed to withstand humidity, cleaning agents, and daily use over time.

Choose from 1-Way or 2-Way configurations with manual or thermostatic control to suit your space and preferences.

Available System Types

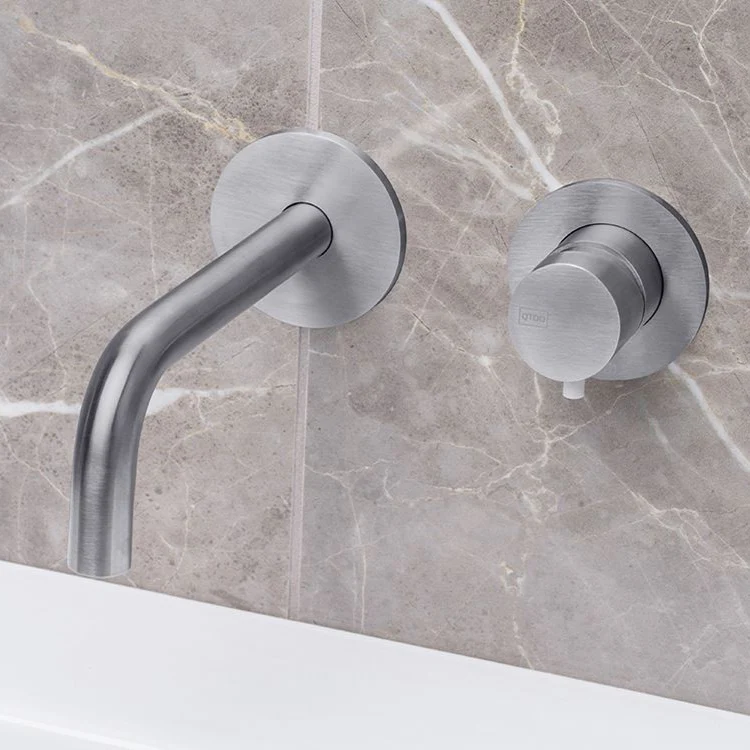

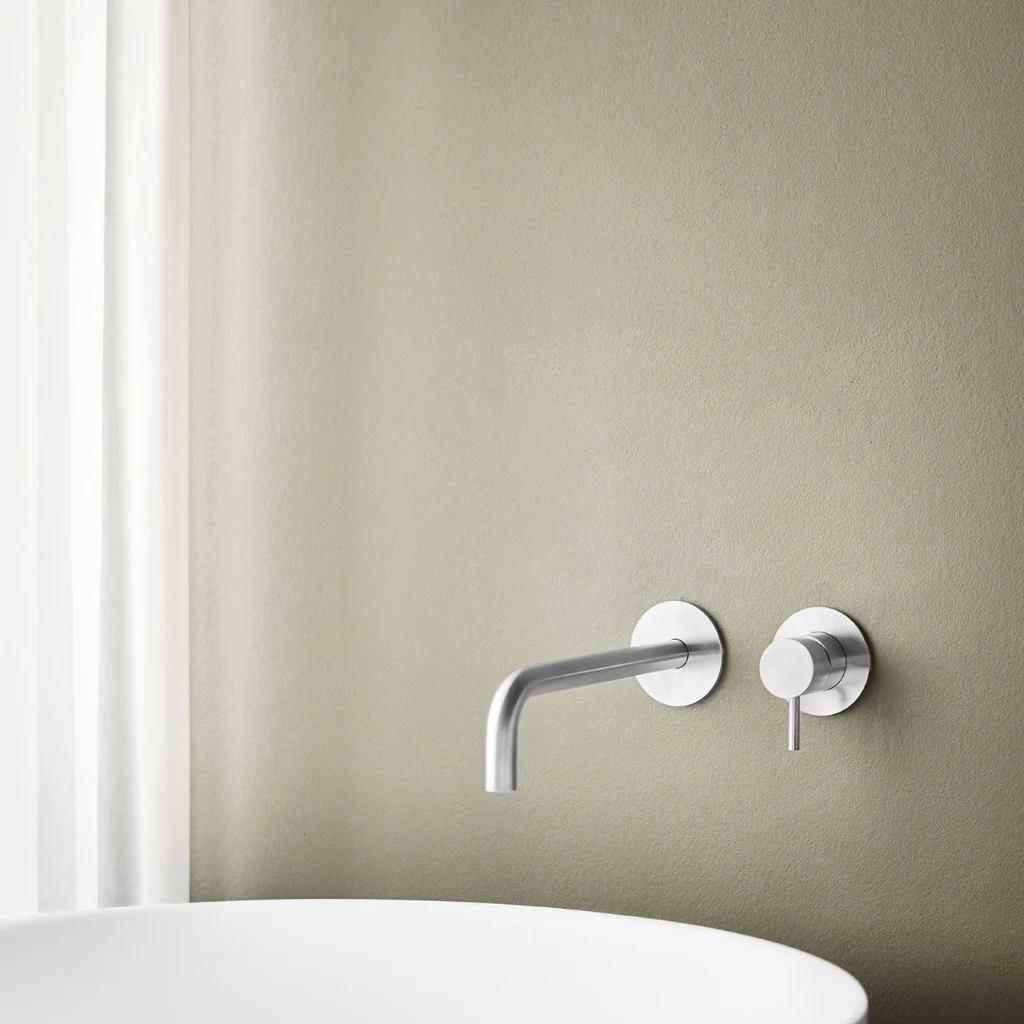

• 1-Way Bath Set

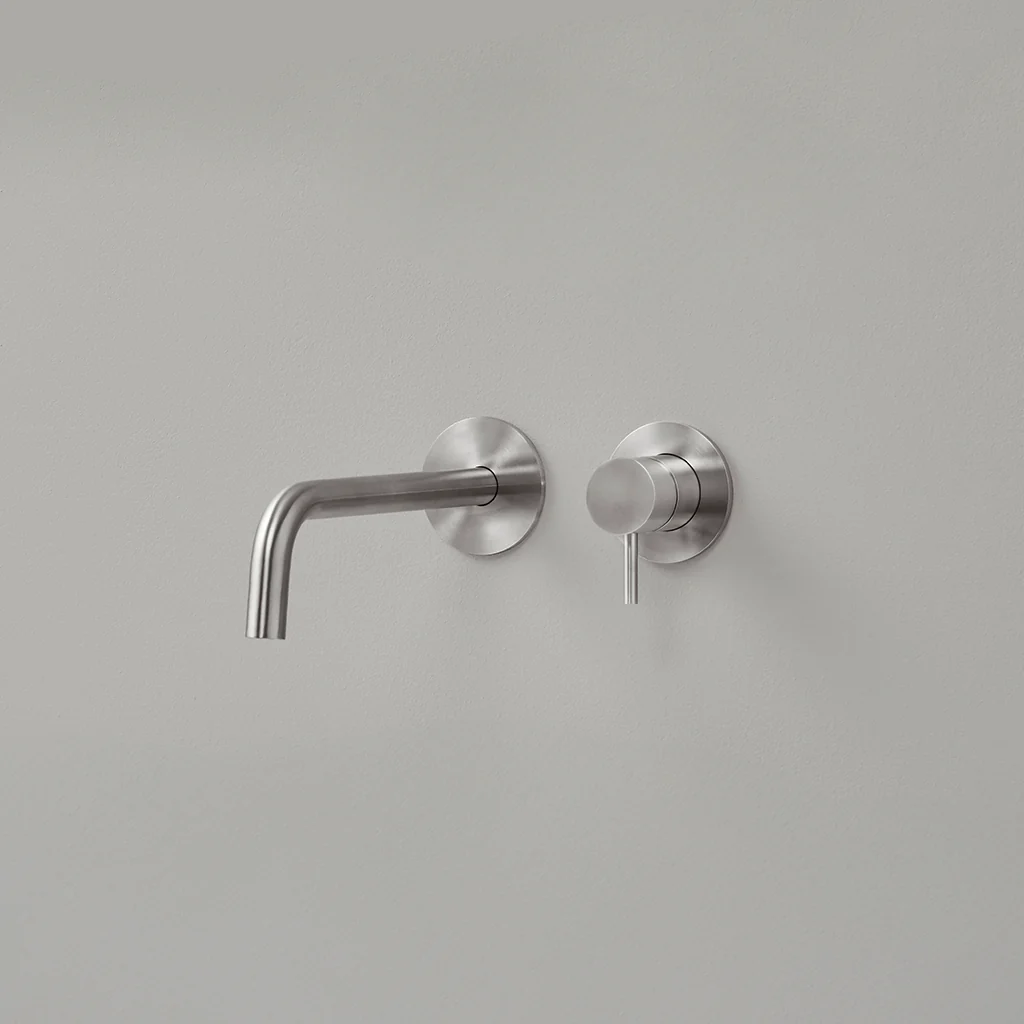

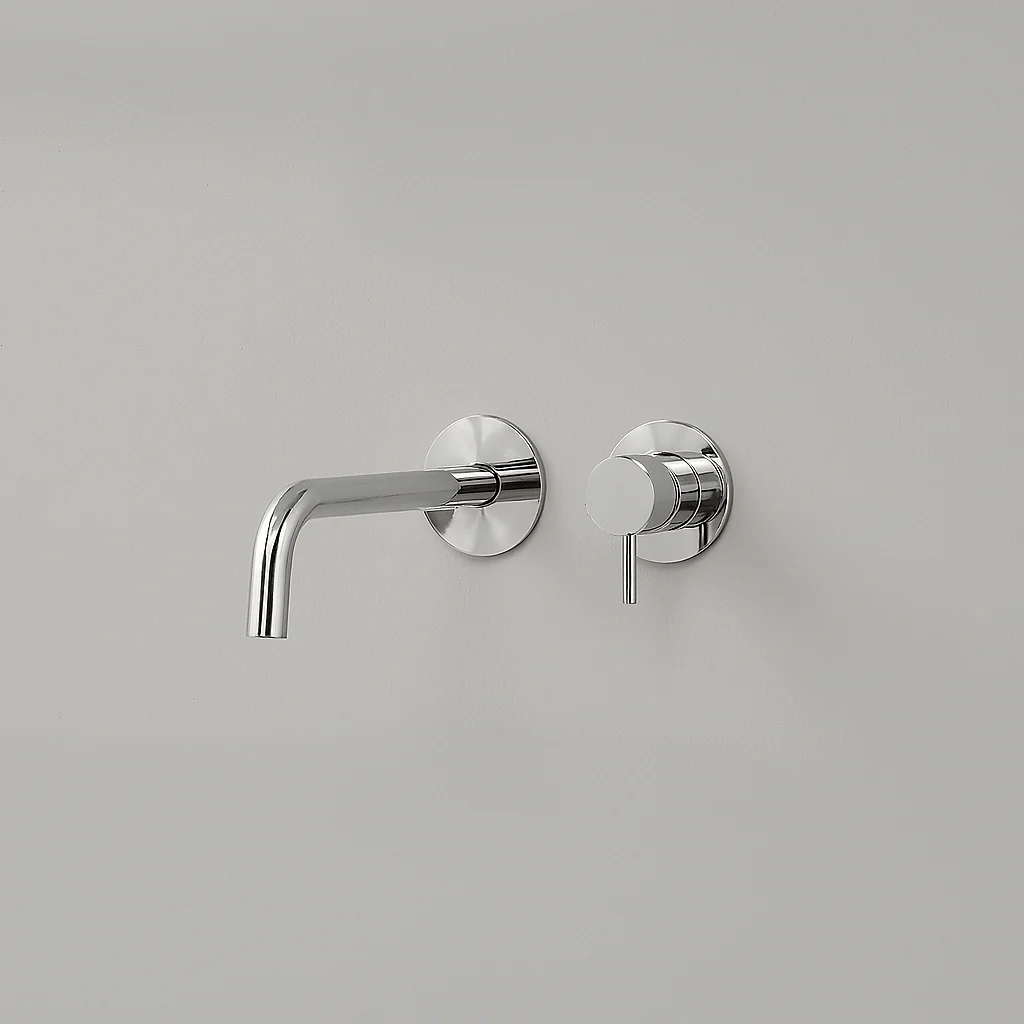

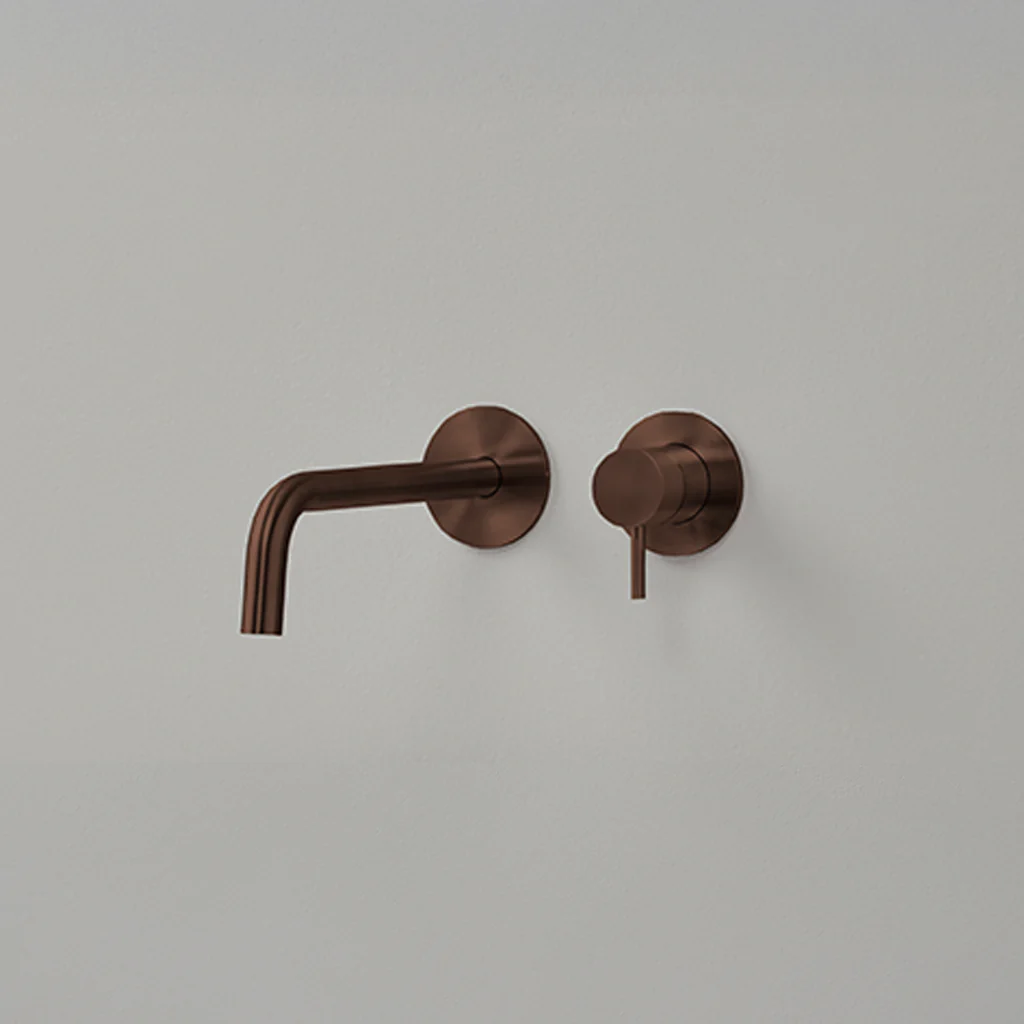

  A simple setup with a single wall-mounted spout and manual mixer—ideal for minimalist installations.

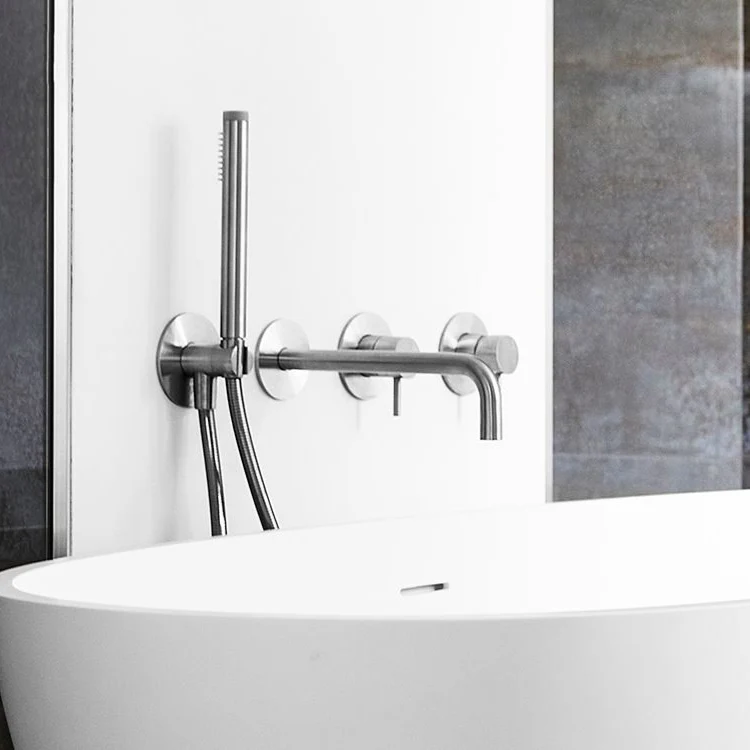

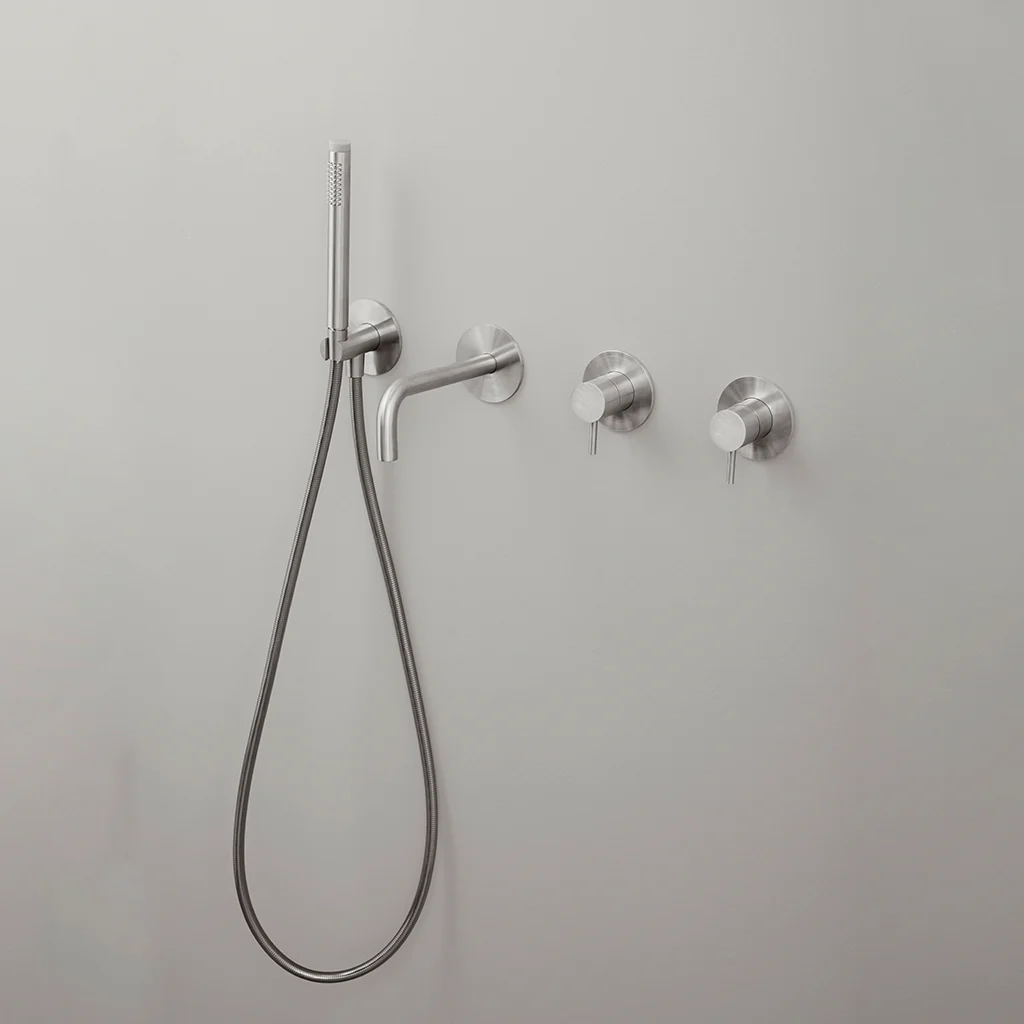

• 2-Way Bath Set

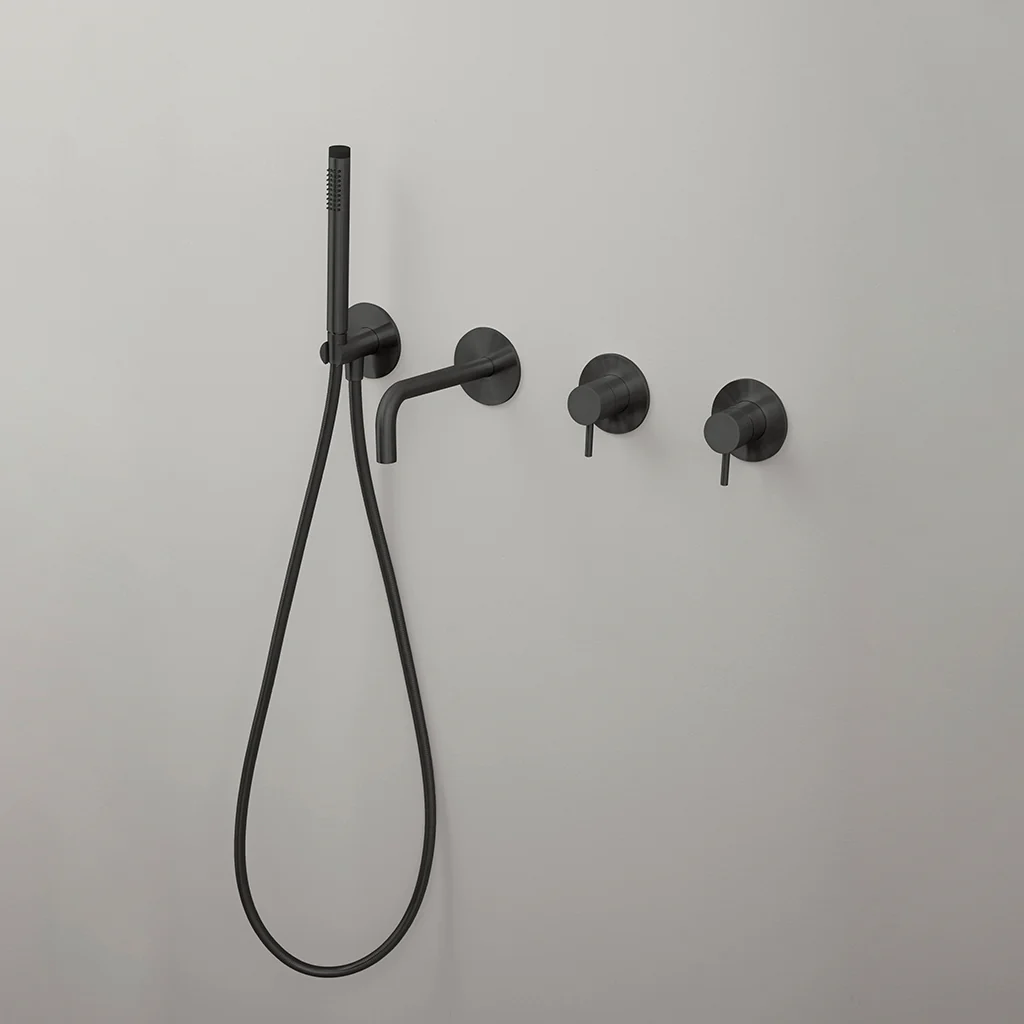

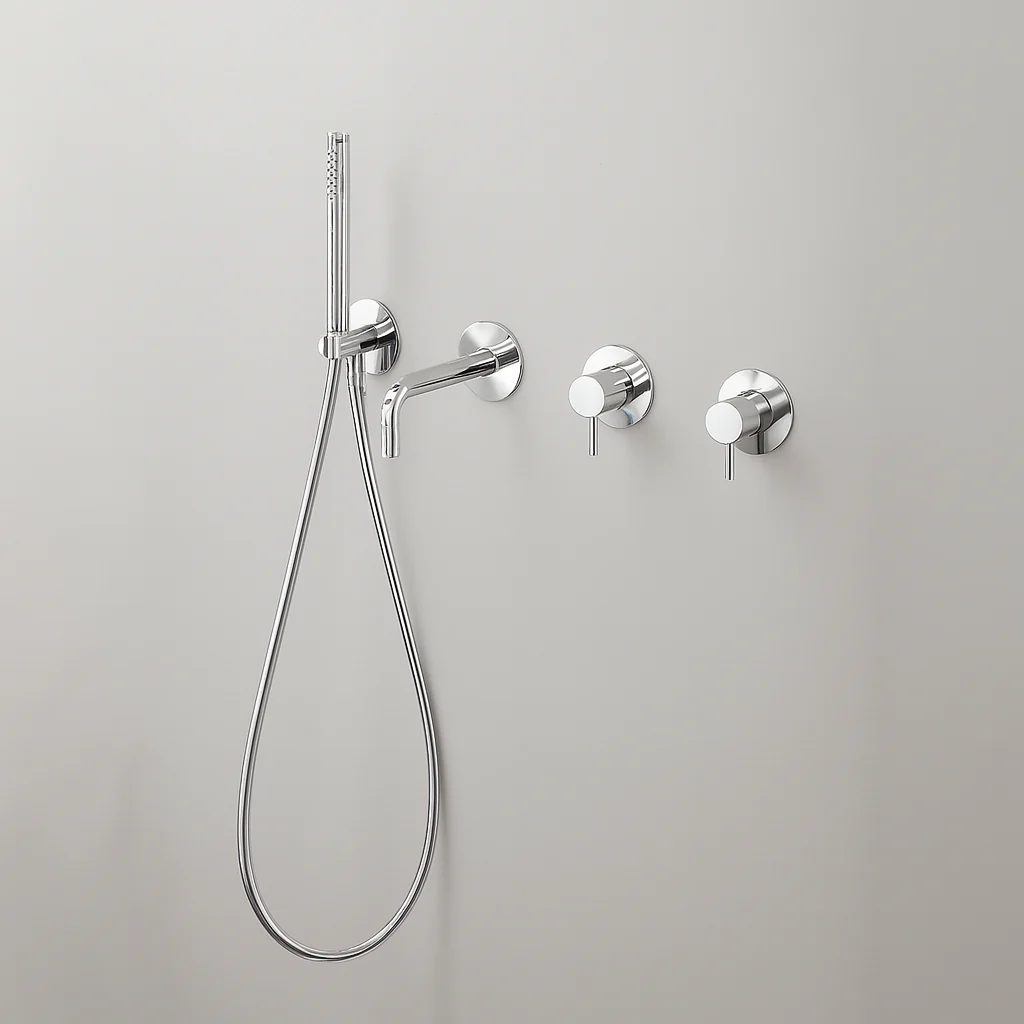

  Includes both spout and hand shower, with a diverter for switching between them. Available with manual or thermostatic mixer.

Control Options

• Manual Mixer
  Basic hot/cold adjustment. For 2-way sets, includes an integrated diverter.

What’s Included

All Qtoo bath sets include both external trim and internal rough-in components for streamlined installation.

• Fixed Wall-Mounted Spout (190 mm projection)
• Hand Shower with Hose and Wall Mount (2-Way sets only)
• Wall-Mounted Diverter Control
• Manual or Thermostatic Mixer
• Built-in mixer body and valve hardware
• 2 × BD8002GN 1/2" NPT Adapters for North American supply lines

Important Note for North American Installations

Each set includes 2 × BD8002GN 1/2" NPT adapters for connecting the built-in mixer valve to standard North American hot and cold supply lines. These adapters are used only on the mixer inlets. Additional adapters (e.g., 3/8", 9/16", 1/2") may be needed for spout or hand shower outlets and should be sourced locally. We recommend consulting a licensed plumber to ensure code compliance.

Optional Components

To complete your installation, the Qtoo Bathtub Waste Drain with Overflow Safety can be selected as an add-on. This component offers intuitive water management and a discreet, minimalist finish.

Made from marine-grade stainless steel and designed to complement the full Qtoo bath set, this drain includes a push-open mechanism and antibacterial coating.

Optional Drain Specifications

• Diameter: Ø 72 mm (2.87")
• Height: 58 mm (2.28")
• Overflow & Drain Hole Size: 50 mm
• Features: Push Open, Easy Clean, Antibacterial, Overflow
• Certifications: CSA B125.1 (2018), Lead-Free Compliant

Specifications

• Spout Projection: 190 mm (7 1/2")
• Spout Diameter: 22 mm (7/8")
• Flange Diameter: 70 mm (2 3/4")
• Built-In Depth: 69 mm (2 3/4")
• Trim Rose Diameter: 90 mm (3 1/2")
• Flow Rate: Max. 1.3 gpm (5.0 L/min); Spare 2.5 gpm flow regulator included
• Built-in aerator for splash-free water delivery

• 10-Year Product Warranty
• 5-Year PVD Finish Warranty
• NSF/ANSI 61 Certified for Water Purity
• CSA B125.1 (2018) and ASME Compliant
• Made in Europe

Materials

• Marine-Grade Stainless Steel (AISI 316)
• Lead-Free & Antibacterial

Finishes

• Satin Stainless Steel
• Polished Stainless Steel

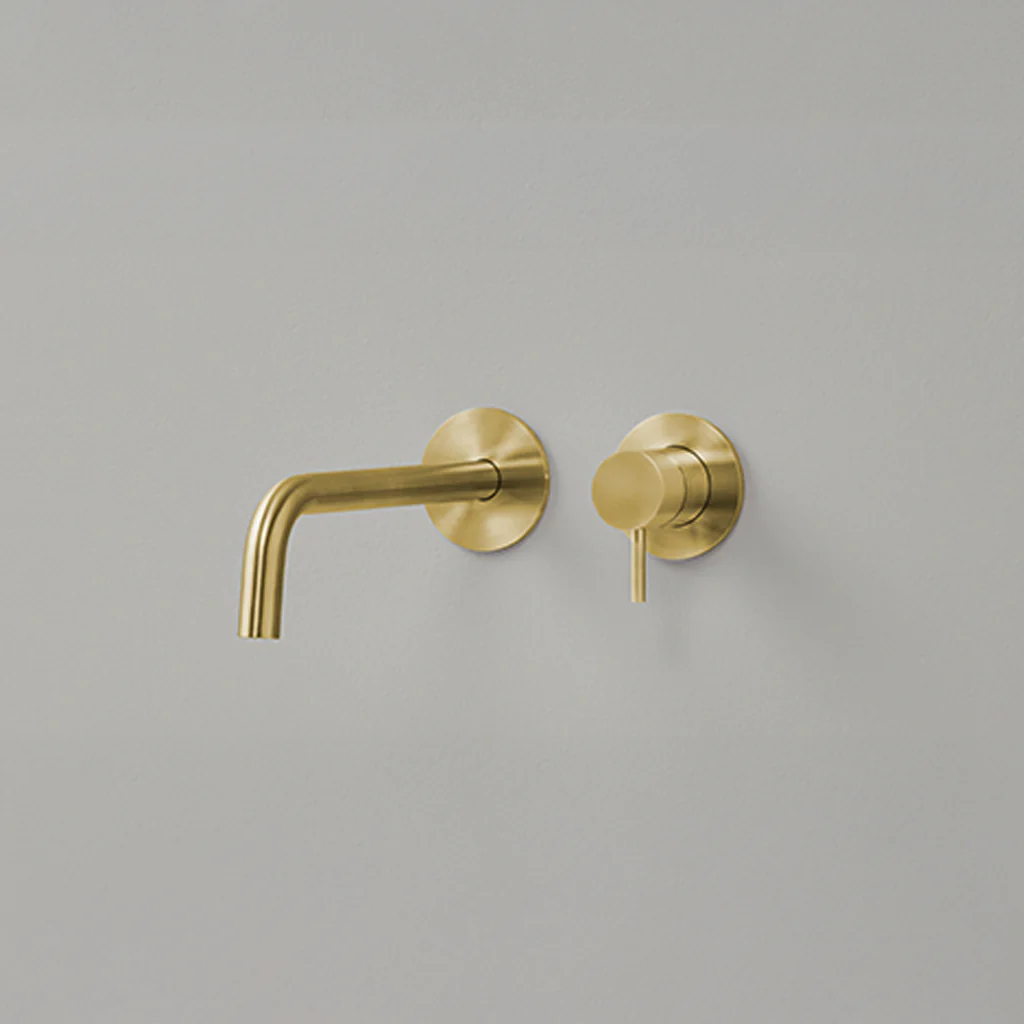

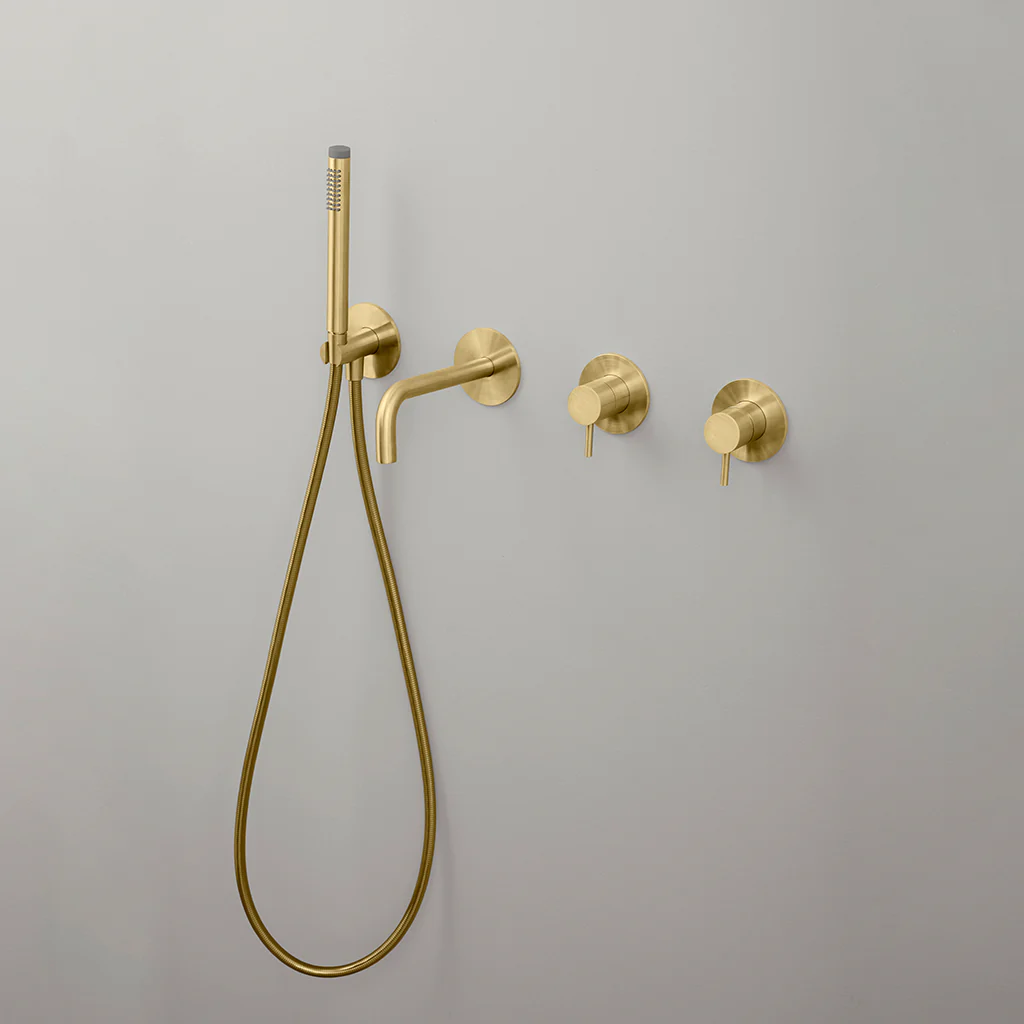

• PVD Satin Brass
• PVD Polished Brass

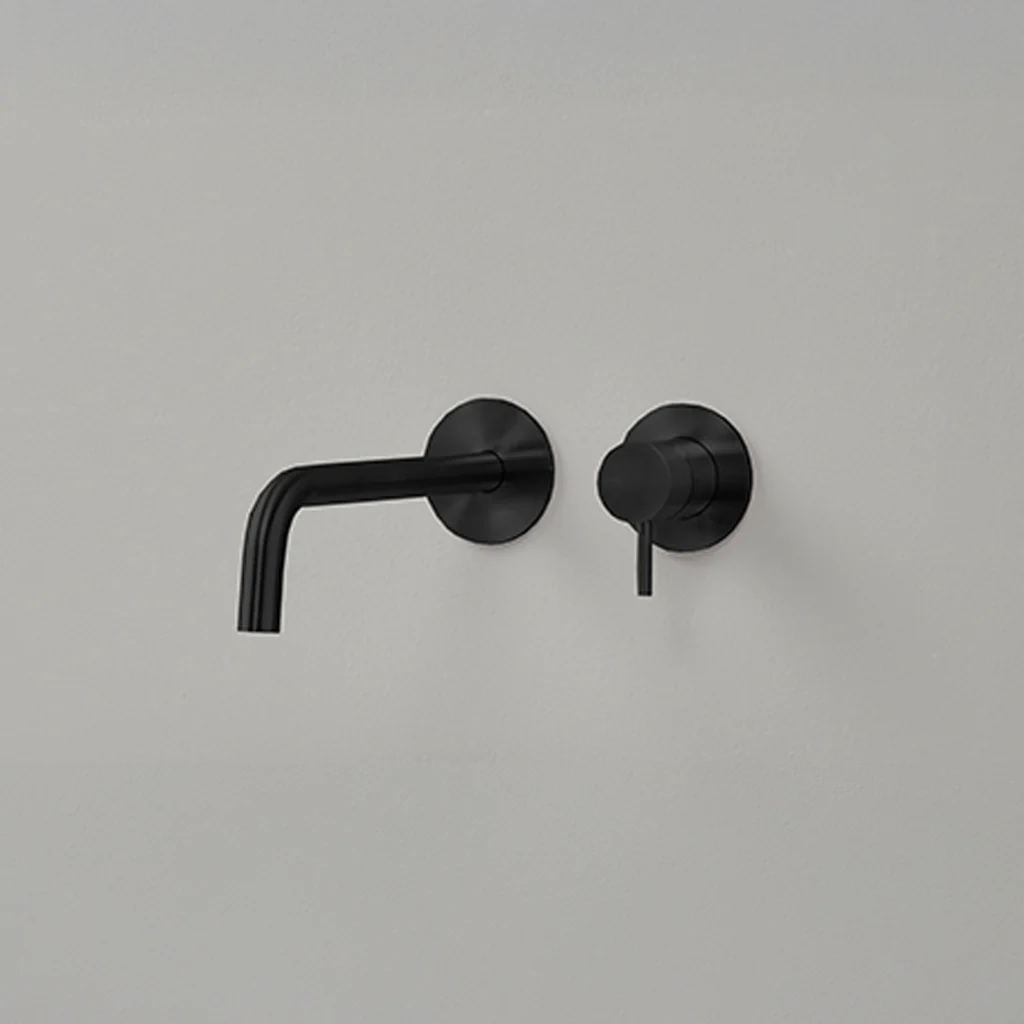

• PVD Satin Black

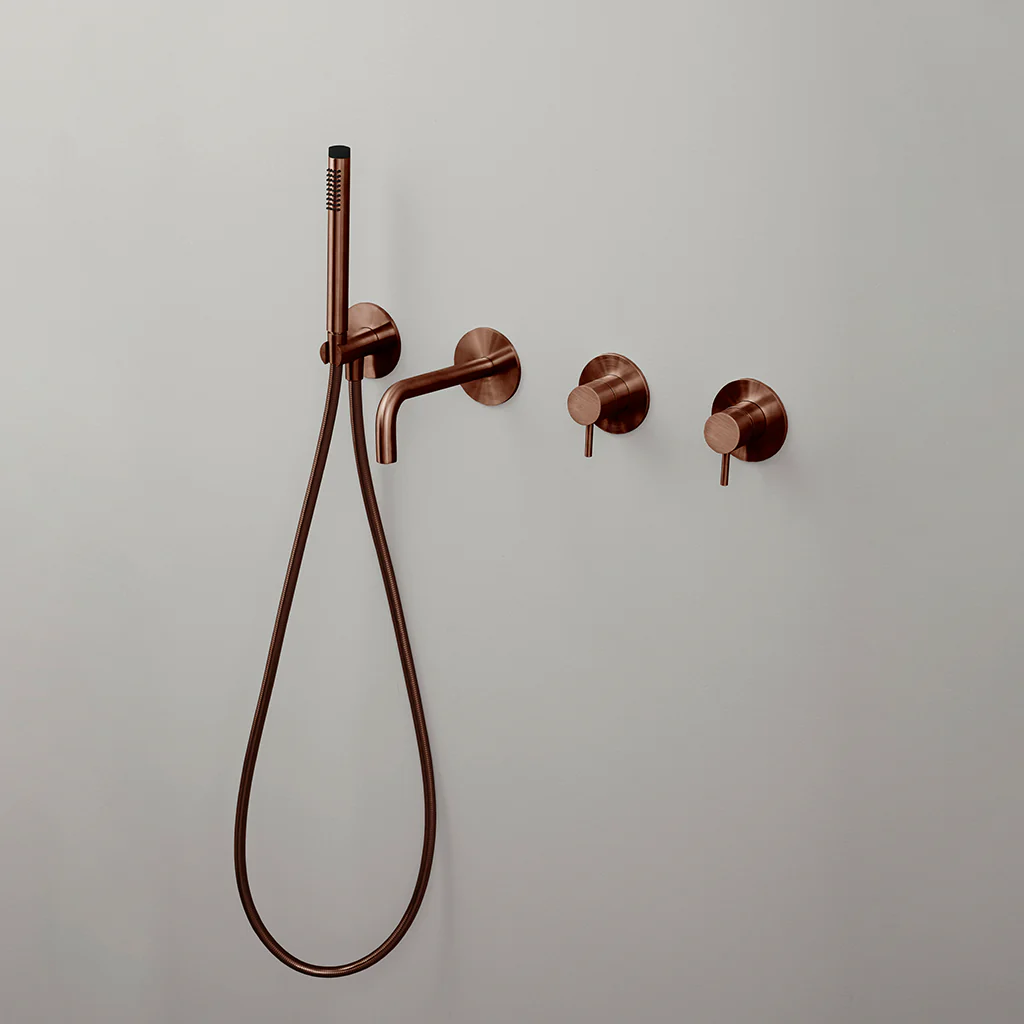

• PVD Satin Bronze
