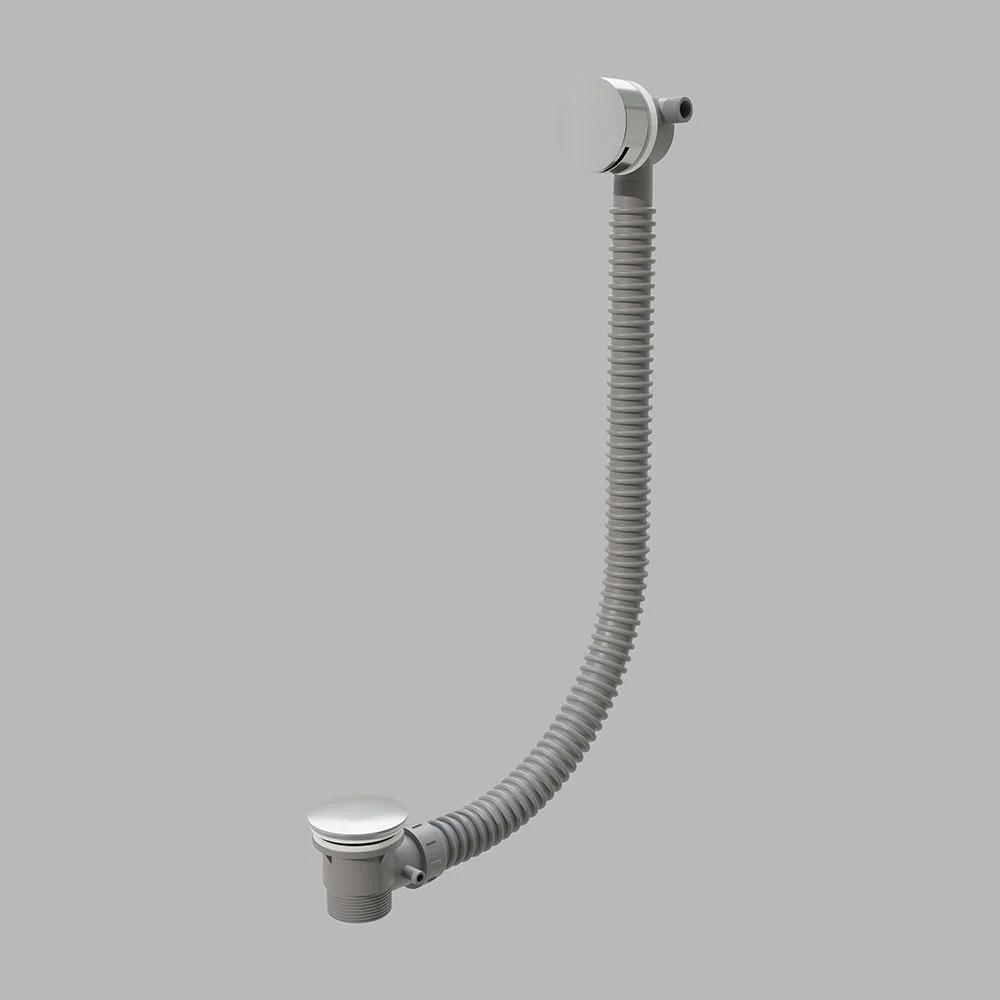

The Qtoo Bathtub Waste by d line is a stainless steel bathtub drain system with integrated overflow functionality and foot-bounce drainage. Designed for residential and commercial bathtub installations where clean design and long-term performance are required. Made in Europe.

Available in two configurations:

• Without Water Filler — Standard configuration where the overflow functions as a safety drain only. Water enters via a separate spout or wall-mounted filler.
• With Integrated Water Filler — The tub fills through the overflow itself, eliminating the need for a visible spout.

Part of the Qtoo collection by d line. Pairs with the touchless soap dispenser, touchless paper dispenser, and manual paper towel dispenser for a cohesive bathroom design. View the full Qtoo collection here.

Specifications

• Ø 72 mm (2.87") x H 58 mm (2.28")
• Overflow hole size: 50 mm
• Drainage hole size: 50 mm
• Push open, easy clean, anti-bacterial, overflow
• Lead-free compliant
• Certified: CSA B125.1 (2018)

Installation should be completed by a professional plumber for residential and commercial applications.

Materials

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).

Additional Finishes (Available Upon Request)

• PVD Satin Brass
• PVD Satin Bronze
• PVD Satin Black
• Polished versions
• X-BAC antimicrobial coating

Product Downloads

• Waste Without Water Filler — Spec Sheet (PDF)
• Waste With Overflow and Water Filler — Spec Sheet (PDF)
• Qtoo Product List (PDF)
• Qtoo Collection Catalogue (PDF)

Certifications & Standards

• CSA B125.1 (2018)
• NSF/ANSI 61 Certified
• GDV Certified
• Lead-free, allergy-friendly
• Leakage-tested at 15 bar

Warranty

10-year warranty on all Qtoo line products.
