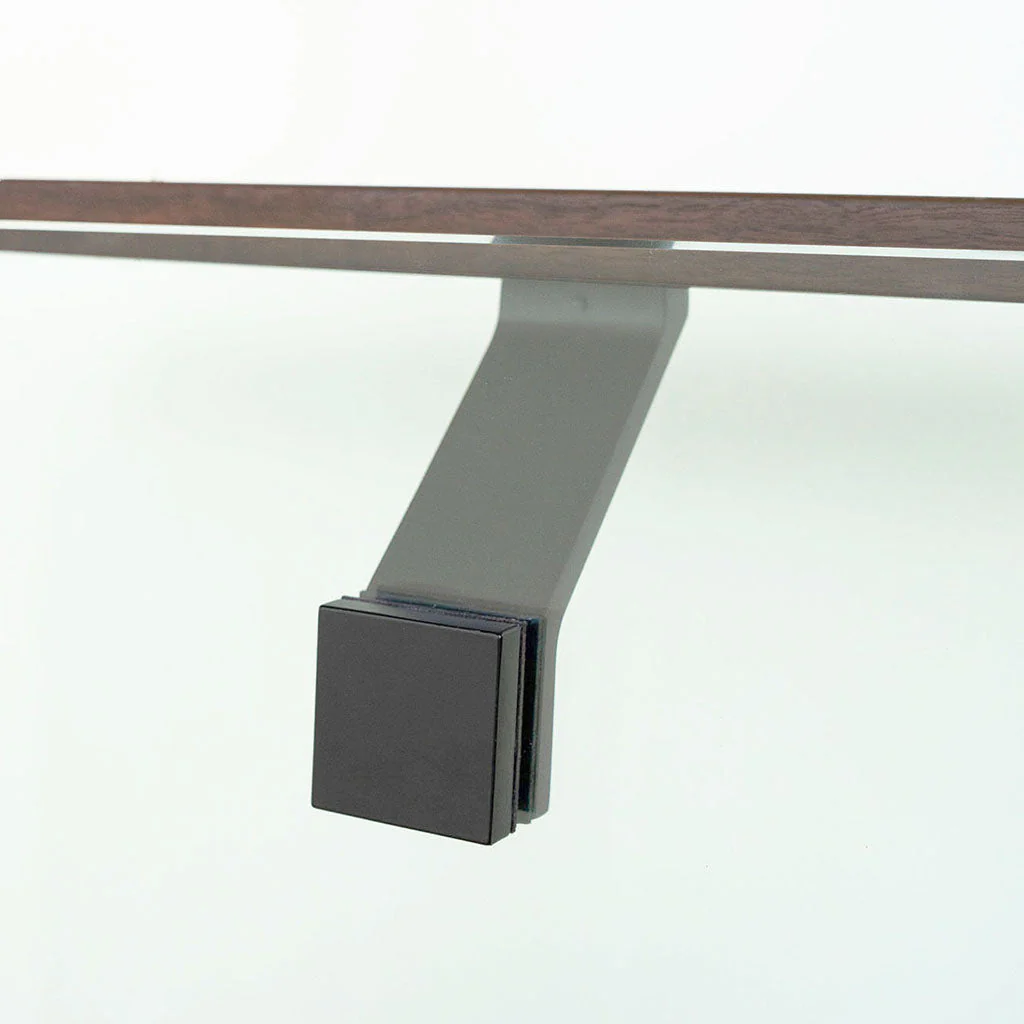

The SA Wall and Glass Mounted Brackets by Componance are stainless steel handrail brackets available for wall and glass applications. Modern lines with a balance of strength and graceful delicateness.

Complementing square glazing standoffs for glass mounting (1-1/2" & 2" lengths) available here.

Specifications

• Wall Mount
• Dimensions: W 44.5 mm (1.8") x H 117 mm (4.6") x D 74.6 mm (2.9")
• Minimum 38 mm (1.5") solid backing, wood stud, or concrete required for anchoring
• Suggested spacing: 1220 mm (4'-0")
• Includes all fasteners except 2 #10 flat head wood screws
• Glass Mount
• Dimensions: W 44.5 mm (1.8") x H 117 mm (4.6") x D 76.2 mm (3")
• Requires 19 mm (0.75") diameter hole in glass — specify glass thickness when ordering
• Suggested spacing: 1220 mm (4'-0")
• Includes all fasteners except 2 #10 flat head wood screws

Materials

304 stainless steel, brass.

Available Finishes

• Brushed Brass
• Brushed Stainless Steel
• Powder Coated Black
• Powder Coated White

Product Downloads

Wall Mount

• SA-Wall Product Sheet (PDF)
• SA-Wall 2D AutoCAD Blocks (DWG)
• SA-Wall Sketchup Drawing (SKP)
• SA-Wall Installation Instructions (PDF)

Glass Mount

• SA-Glass Product Sheet (PDF)
• SA-Glass 2D AutoCAD Blocks (DWG)
• SA-Glass Sketchup Drawing (SKP)
• SA-Glass Installation Instructions (PDF)
