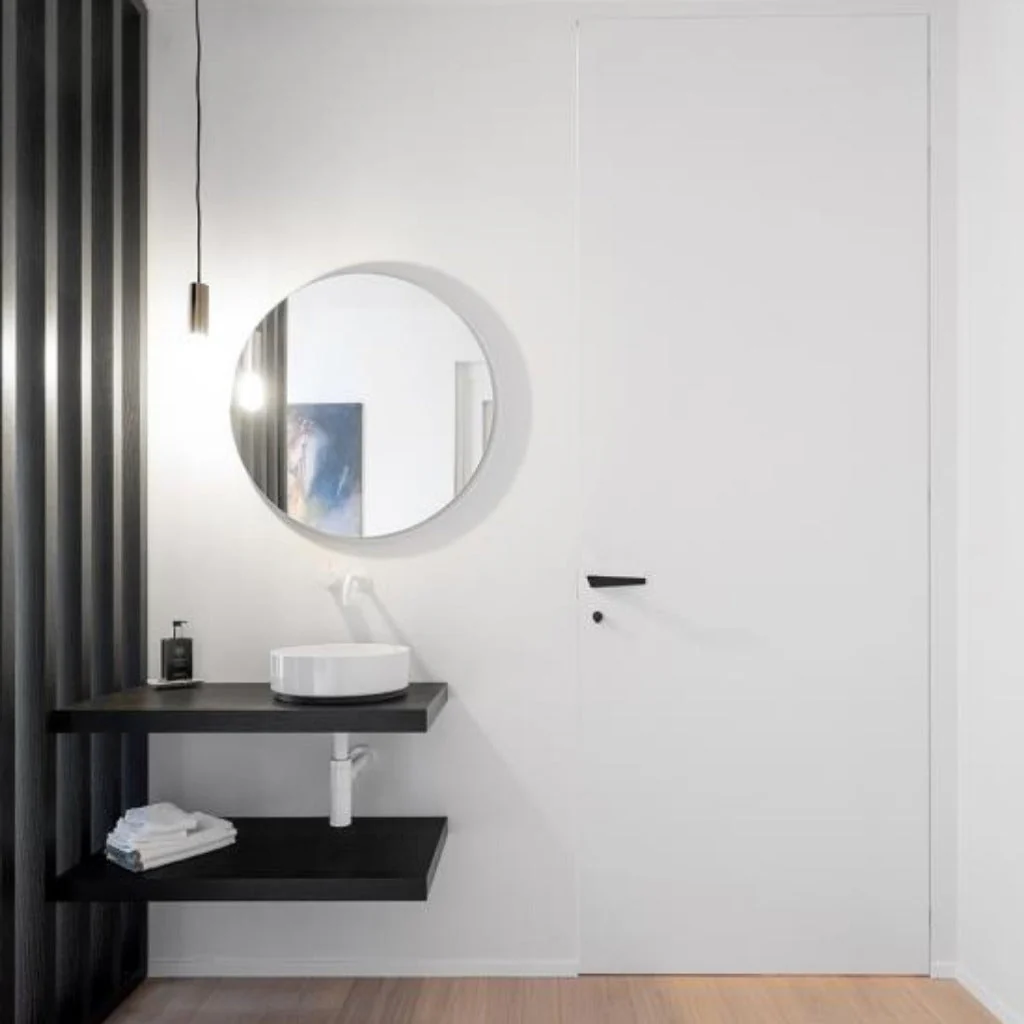

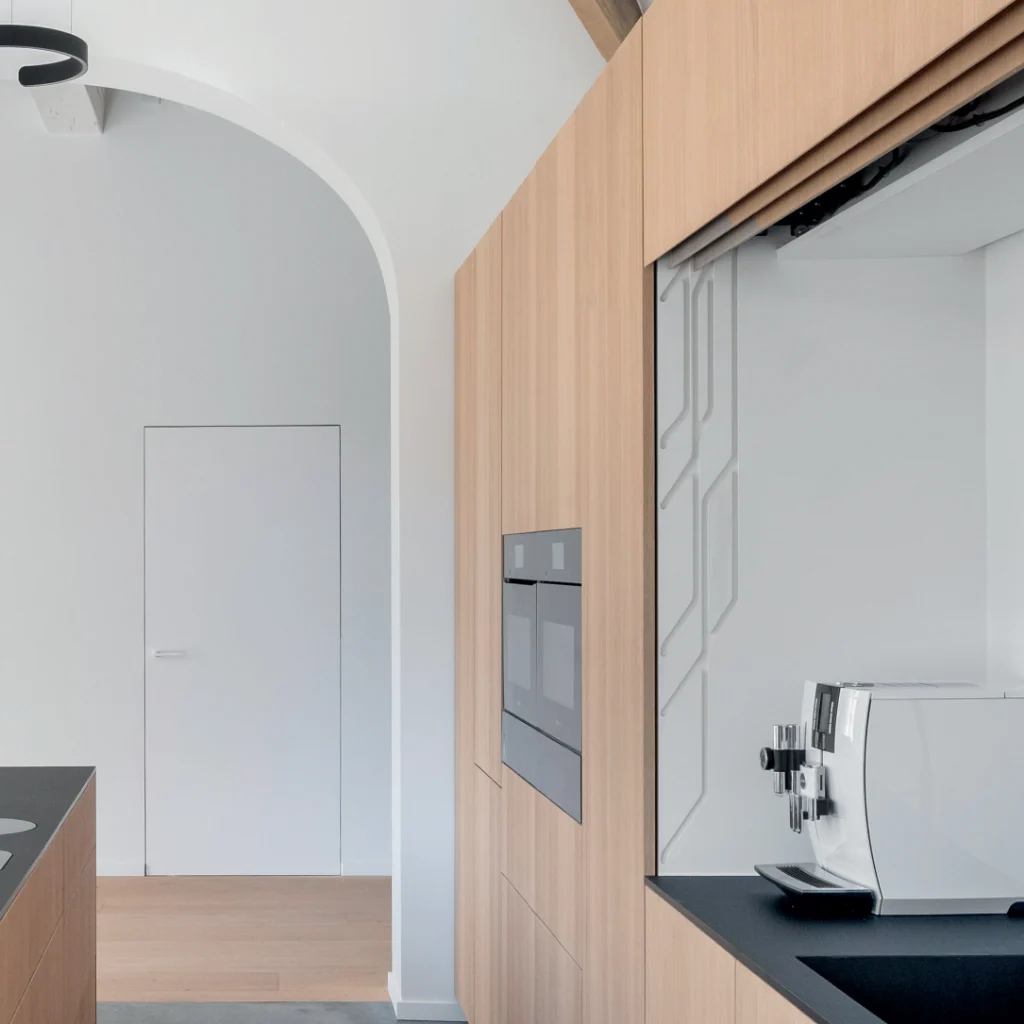

The Frameless Door System by Xinnix is a concealed aluminium door frame designed for seamless wall integration. The flush-face construction allows the door to match the wall's colour and finish, creating a discreet, invisible-door aesthetic. Made in Belgium. Door panel and door levers are not included and must be specified separately.

The system includes an aluminium frame, 3D adjustable concealed hinges, a euro magnetic mortise latch, and noise-reducing gaskets. Selecting handing involves choosing the opening direction from the primary side — see handing guide.

Specifications

• Widths: 710 mm (28"), 810 mm (32"), 910 mm (36")
• Height: 2015 mm (80")
• Minimum Wall Thickness: 75 mm (3")
• Fire Rating: EUR certified (CAN & USA certification pending)
• Sound Insulation: Integrated gaskets
• Application: Residential
• Door Closers: Optional, available upon request
• Installation: Professional installation recommended. See installation guides for corner bead requirements.

Components Included

• Aluminium frame — white primed (RAL 9016 SA30)
• 3D adjustable A24 concealed hinges
• Euro magnetic mortise latch

Door panel, door levers, and thumb turns are not included and must be specified separately.

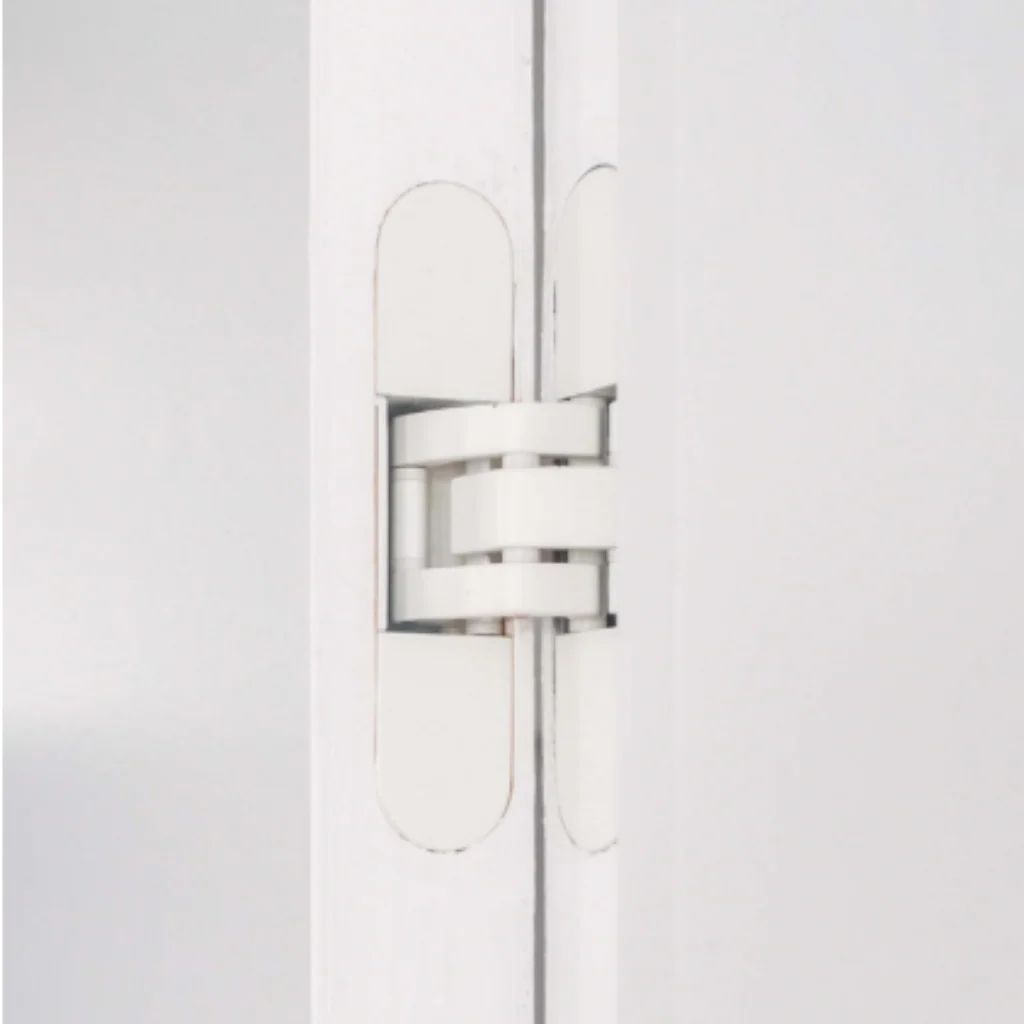

A24 Hinge

• Reversible — left/right
• Opening angle: 180°
• 3D adjustable, fully concealed
• Load capacity: 60 kg (3 hinges), 80 kg (4 hinges)
• Standard finish: White

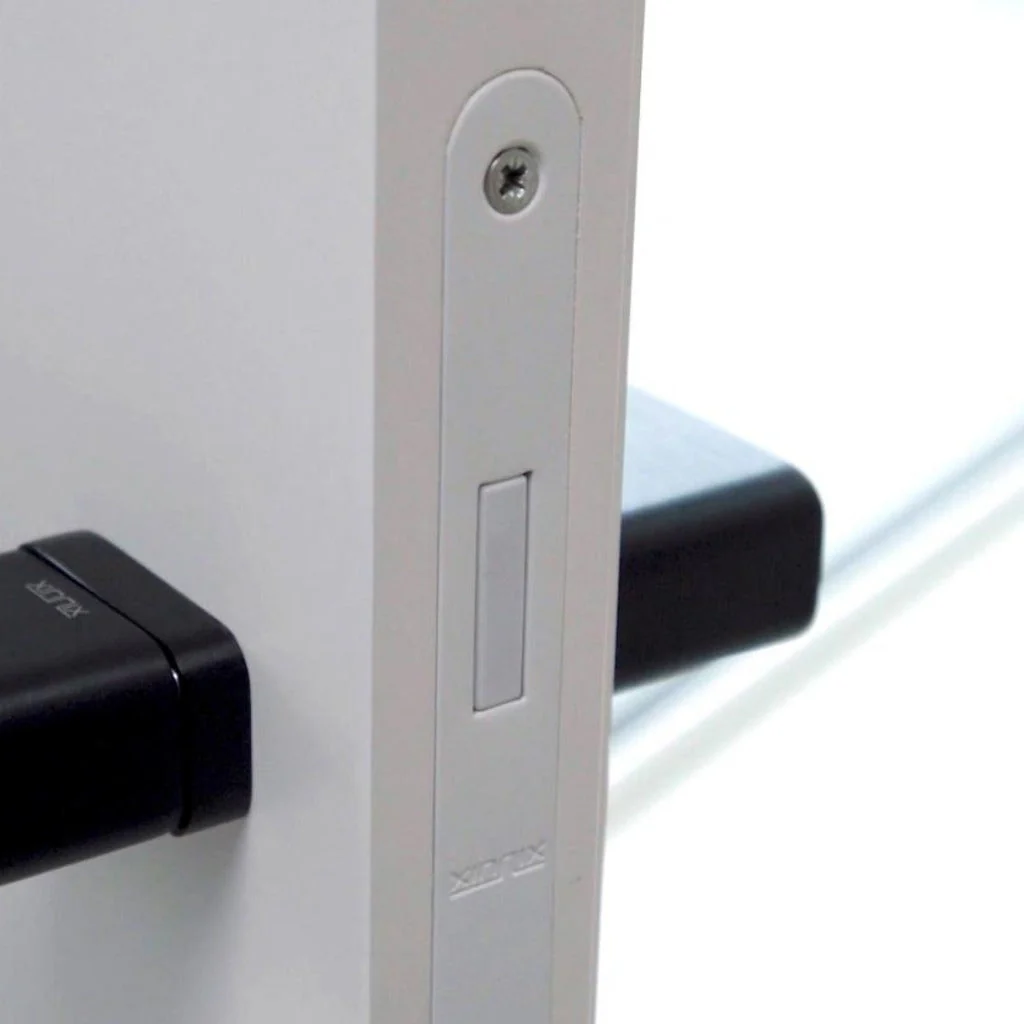

Magnetic Mortise Latch

• Dimensions: 120 × 22 mm
• Types: Passage D70, Privacy D73
• Counter strike: I97 — 22 × 82 mm
• Standard finish: Satin Stainless Steel

Materials

Aluminium frame, white primed as standard. Door levers and hardware sold separately — see the door levers collection.

Product Downloads

For the complete collection, download the catalogue here.

Product Sheets

• Handing Guide (PDF)
• 240 Milling Plans (PDF)

Installation

• 240 Installation Guide (PDF)
