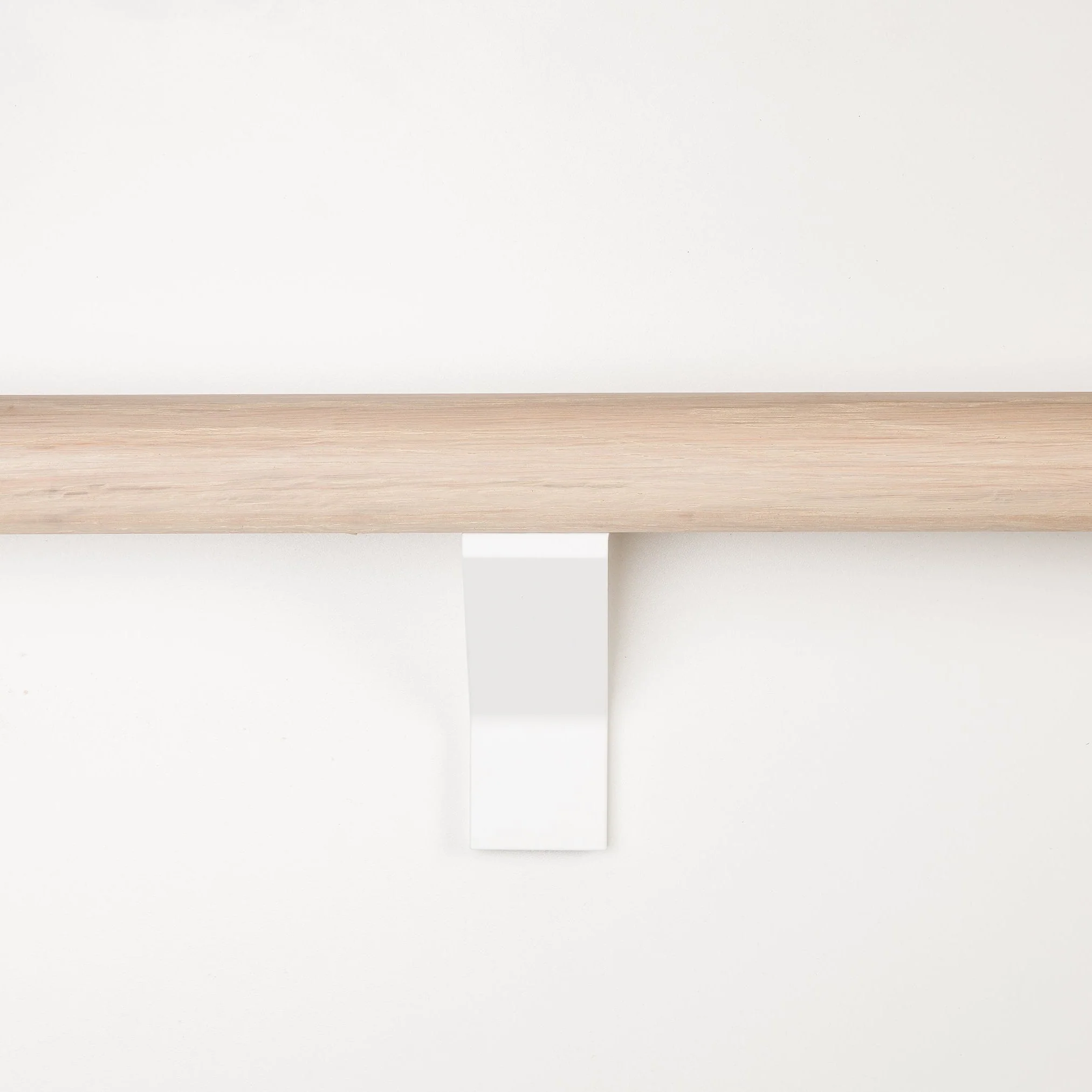

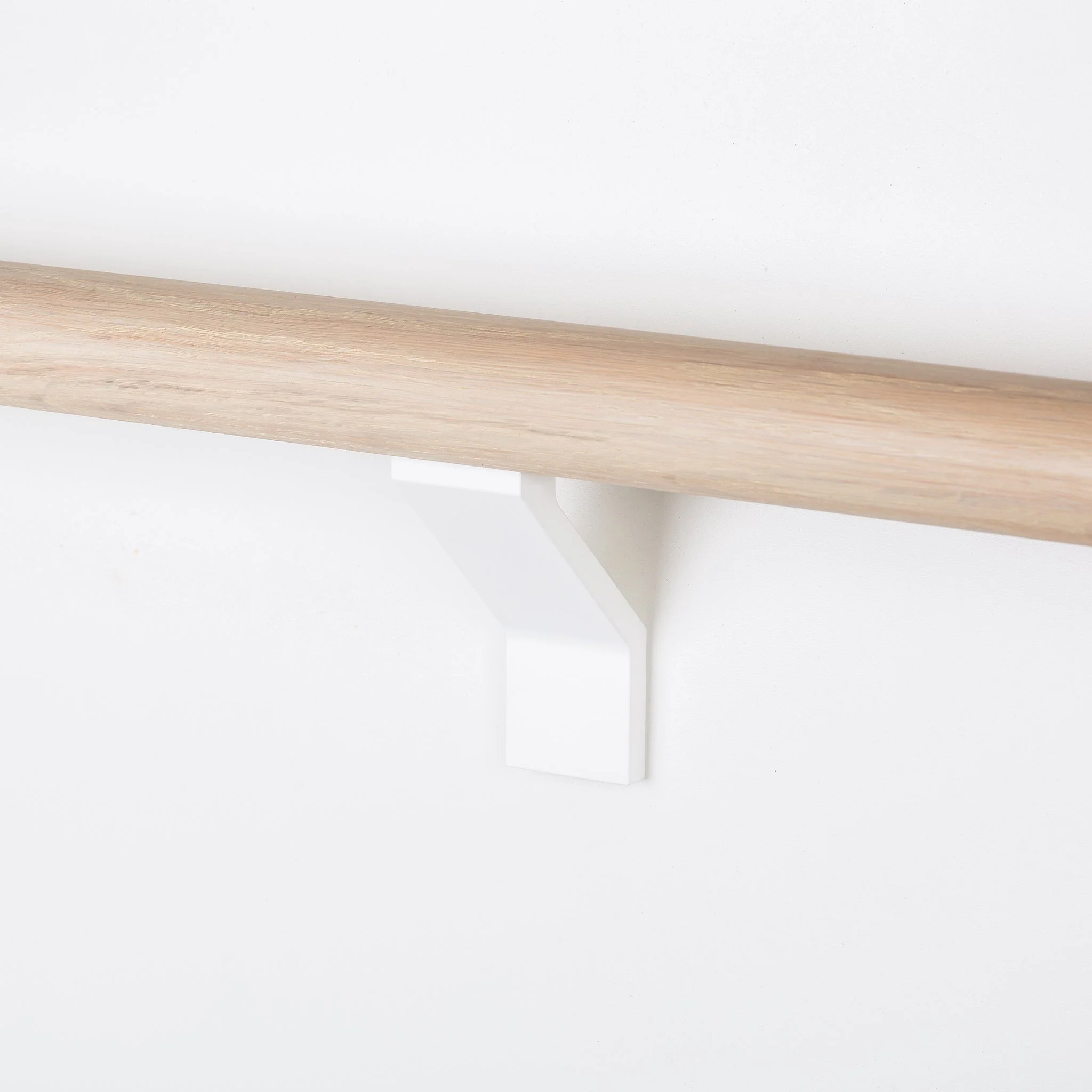

The SA Wall and Glass Mounted Brackets by Componance are stainless steel handrail brackets available for wall and glass applications. Modern lines with a balance of strength and graceful delicateness.

Complementing square glazing standoffs for glass mounting (1-1/2" & 2" lengths) available here.

Specifications

Wall Mount
Dimensions: W 44.5 mm (1.8") x H 117 mm (4.6") x D 74.6 mm (2.9")
Minimum 38 mm (1.5") solid backing, wood stud, or concrete required for anchoring
Suggested spacing: 1220 mm (4'-0")
Includes all fasteners except 2 #10 flat head wood screws
Glass Mount
Dimensions: W 44.5 mm (1.8") x H 117 mm (4.6") x D 76.2 mm (3")
Requires 19 mm (0.75") diameter hole in glass — specify glass thickness when ordering
Suggested spacing: 1220 mm (4'-0")
Includes all fasteners except 2 #10 flat head wood screws

Materials

304 stainless steel, brass.

Available Finishes

Brushed Brass
Brushed Stainless Steel
Powder Coated Black
Powder Coated White

Product Downloads

Wall Mount

Glass Mount
